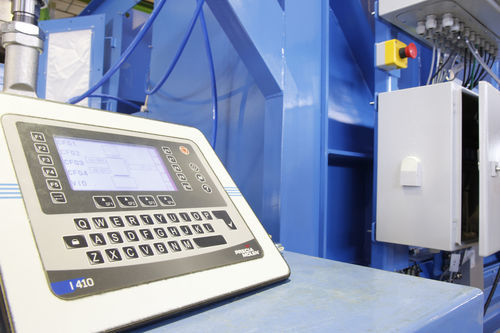

Batch controller I410 MDU

Overview
The I410 MDU application enables formula- or recipe-based preparation of finished or semi-finished products from multiple components. It automates weight-based dosing for each batch, handles inventory management and ensures complete production traceability. The solution is adapted for integration into industrial production lines requiring precise multi-component dosing.

Features

• Actuator control via internal, remote or virtual physical inputs/outputs (bit read/write to a table shared on the fieldbus).
• Full dosing process control through I/O, MODBUS protocol or fieldbuses: ProfibusDP, Profinet, DeviceNet, Ethernet TCP/MODBUS, Ethernet/IP.
• Independent operating parameters per weighing lane, stored in separate configuration files with four password-protected access levels (Installer, Supervisor, Operator, User).
• Parameter backup/restore and results export via USB drive.

Target industries

• Food processing
• Chemical
• Pharmaceutical
• Cosmetic
• Other manufacturing sectors requiring formula-based dosing

Characteristics / technical specifications

• Application type: Multiple dosing unit controller (MDU) based on I410 terminal.
• Primary function: Automated dose preparation by weight following formula/recipe.
• Inventory and production traceability management.
• Control I/O: Actuator control via internal, remote or virtual inputs/outputs; shared bit table on fieldbus.
• Supported interfaces/protocols: MODBUS (Ethernet TCP/MODBUS), ProfibusDP, Profinet, DeviceNet, Ethernet/IP, I/O-based control.
• Configuration: Independent parameters per weighing lane with separate configuration files.
• Security: Four access levels protected by passwords — Installer, Supervisor, Operator, User.
• Data handling: Parameter backup/restore and results transfer using USB drive.
