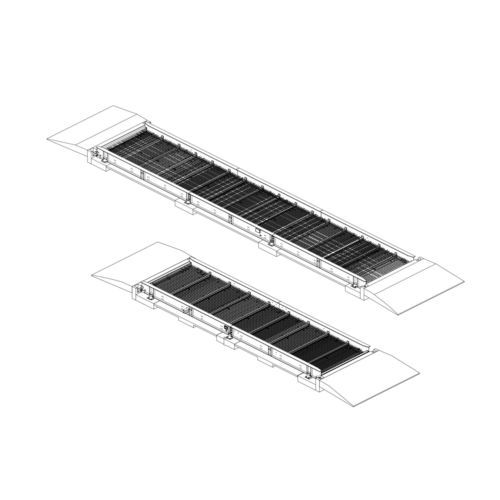

Rugged weighbridge C85 HSDS

steelconcretemetallic

Overview
The C85 HSDS is a low-profile, high-strength above-ground weighbridge with a monolithic concrete deck designed for severe or non-standard vehicle weighing applications. Its lowered deck minimizes overall height and reduces required access ramp lengths, while the design allows adaptation to large platform dimensions.

Design advantages

• Low-profile construction: minimal overall height reduces ramp length requirements.
• High-strength above-ground structure suitable for severe and non-standard applications.
• Monolithic concrete deck for uniform load distribution and long service life.
• Longitudinal beams acting as rigid wheel guides for accurate vehicle positioning.

Capacity / suitability
The C85 HSDS is intended for specific load spans from 50 t to 100 t and can be sized for heavy-duty vehicle weighing and large platform lengths.

Construction
The metallic structure comprises IPE 500 side beams, two end spacers and multiple intermediate spacers. The assembly can be machine-welded and delivered as a single piece from the factory in France or machine-bolted for on-site assembly to facilitate container transport. Concrete casting is performed on a polyethylene film. The iron/steel structure is supplied in full by PRECIA MOLEN.

Technical specifications

• Type: Above-ground low-profile weighbridge
• Deck: Monolithic concrete deck
• Structure: High-strength steel with IPE 500 side beams
• Assembly: Welded in one piece or machine-bolted for on-site assembly
• Casting method: Concrete cast on polyethylene film
• Wheel guidance: Longitudinal beams serving as rigid wheel guides
• Typical specific load spans: 50 t to 100 t
