Rugged weighbridge ROC

corrosion-resistantfor vehiclesfor trucks

Overview

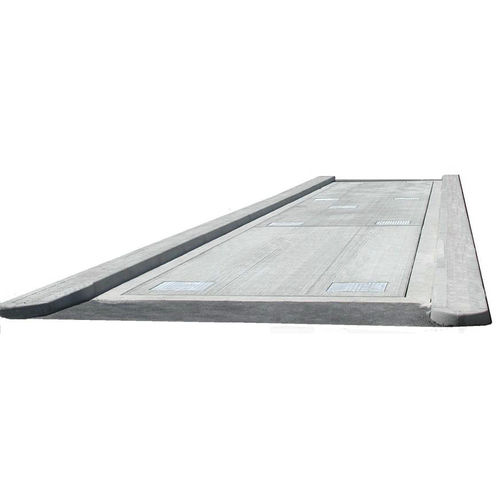

The ROC weighbridge is a modular concrete vehicle weighbridge designed for trucks, light vehicles and agricultural machinery. Built from five standard factory-cast elements, it adapts to most project lengths and installation types (in-pit or surface). Designed and manufactured in Ardèche, France, the ROC is available in legal-for-trade versions.

Design and advantages

• Modular design with fully factory-poured structured concrete modules.
• Simplified civil engineering and site preparation requirements.
• Rapid installation: bridge can be operational within 24 h including initial inspection.
• Movable and re-installable modules for site transfers or layout changes.
• Factory-standard modules reduce on-site assembly time and variability.

Sensors and electronics

• Equipped with analog or digital compression sensors compatible with modern weighing chains.
• Sensors support digital workflows: simplified calibration, interchangeability and improved measurement reliability.

Robust

• Concrete deck resists abrasive and corrosive products and withstands atmospheric exposure without expansion.
• High deck mass (approx. three times conventional decks) increases inertia, protecting sensors from shocks and vibrations.

Durable

• Concrete deck represents a long-term investment with low specific maintenance needs.
• Existing installations can be modernized (measuring chain, electronics, software).
• Modularity enables relocation and extended service life.

Efficient

• Standard factory-cast modules enable very rapid on-site installation and strongly simplified civil works.

Evolutionary / Integration

• Can be integrated with peripherals (cameras, lights, barriers, ANPR, etc.) to build complete input/output weighing solutions.

Additional attributes

• Adaptable to project-specific lengths and configurations.
• Designed and manufactured in Ardèche, France (Made in France).
• Available in legal-for-trade versions.

Technical specifications

• Modularity: composed from standard factory-poured modules; design reference uses five elements to achieve required length.
• Standard module lengths: 4 m, 6 m and 7 m.
• Standard width: 3 m.
• Concrete class: XF4.
• Double mechanical stop system for lateral and longitudinal impact protection.
• Equipped with analog or digital compression sensors.
