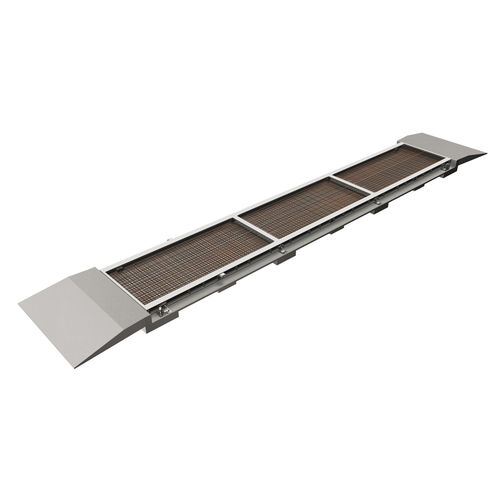

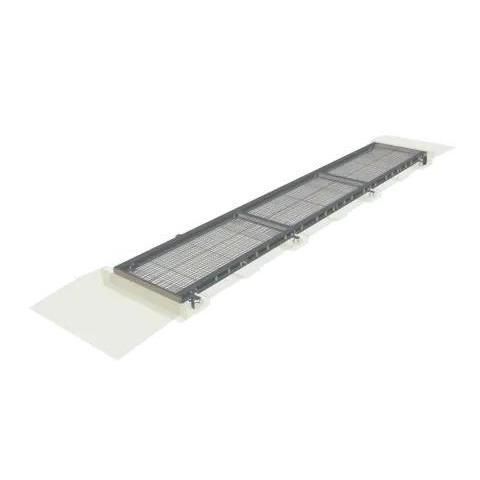

Concrete weighbridge VS 600 CS

modularcorrosion-resistantelectronic

Overview
The VS 600 CS is an on-site assembled weighbridge with a poured concrete deck designed for heavy-duty, high-traffic vehicle weighing applications. A successor to the 7 ELEM, it combines a high-strength steel framework with a concrete platform and is offered in two capacities and eight lengths. The system is fitted with eight stainless steel CDL digital compression load cells mounted laterally under the stringers and accessible without disassembly.

Key features

• On-site poured concrete deck (assembly kit)
• High-strength design for heavy-duty, high-traffic installations
• Available capacities: 60 t and 80 t
• Available lengths: eight lengths from 6 m to 24 m
• Equipped with eight stainless steel CDL digital compression load cells
• Load cells positioned laterally under the stringers and accessible without disassembly

Badges / Certifications

• Made in France
• Global solution
• Legal for Trade
• Adaptability

Technical specifications

• Model designation: VS 600 CS
• Type: On-site poured concrete weighbridge (assembly kit)
• Deck material: Concrete
• Capacities: 60 t; 80 t
• Lengths available: 6 m to 24 m (8 lengths)
• Load cells: 8 × stainless steel CDL digital compression load cells
• Load cell location: Lateral under stringers; accessible without disassembly
• Application: Vehicle weighing; heavy-duty/high-traffic installations
• Origin / product certification: Made in France
