Dispensing robot PDS series
Cartesian4-axis3-axis

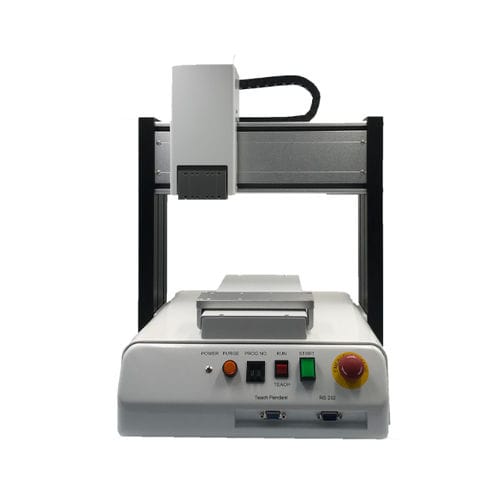

Dispensing robot - PDS series - PreciFluid - Cartesian / 4-axis / 3-axis
Dispensing robot - PDS series - PreciFluid - Cartesian / 4-axis / 3-axis
Add to favorites
Compare this product

Characteristics

Type
Cartesian
Number of axes
4-axis, 3-axis
Function
dispensing, for production, surface treatment, marking, for bonding, dispensing, for resine application, for spraying
Mounting
benchtop
Application domain
for the electronics industry, for the automotive industry, for the pharmaceutical industry, for medical applications, for the cosmetics industry, for the plastics industry, for small parts, laboratory, for clean rooms
Other characteristics
compact, high-precision, safety, vision system, low-noise, custom
Payload

Min.: 2 kg
(4.409 lb)

Max.: 10 kg
(22.046 lb)

Reach

Min.: 200 mm
(7.87 in)

Max.: 700 mm
(27.56 in)

Repeatability

Min.: 0.002 mm
(0.0001 in)

Max.: 0.2 mm
(0.0079 in)

Speed

Min.: 200 mm/s

Max.: 500 mm/s

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Weight

Min.: 15 kg
(33.1 lb)

Max.: 46 kg
(101.4 lb)

Length

Min.: 330 mm
(13 in)

Max.: 885 mm
(34.8 in)

Width

Min.: 500 mm
(19.7 in)

Max.: 698 mm
(27.5 in)

Description

These robots are suitable with all our dispensing equipments – from dispensers to our valves and so on. The standard versions have a working area ranging from mm. If you need a larger workspace, you can contact us so we can review the application. The software can be programmed through the use of a teach pendant or a computer, in order to make device management more accessible by avoiding the use of a complex programming language. The dispensing robots are robust and reliable aluminum units that provide rigidity regardless of the operation. They are CE approved and have many options (contact our technical department for more information). Technical description Instinctive use and programming via a teach pendant Robust and reliable structure Small footprint Wide range of work surfaces
