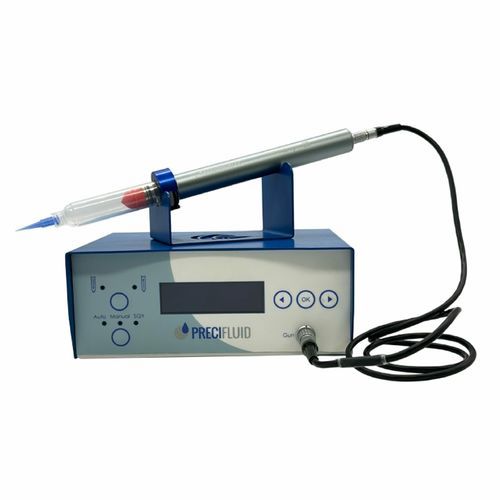

Single-component resin dosing dispenser Precifluid®

adhesivefor low-viscosity liquidsbrazing paste

Overview
The Precifluid® volumetric dispenser is a compact electromechanical solution for precise fluid deposition across a wide range of viscosities. Driven by a stepper motor that advances a defined piston stroke via a magnetic coupling, the patented system achieves repeatable volumes down to 0.06 µL and a push force capacity exceeding 500,000 cps. Designed and manufactured in France, the dispenser maintains high accuracy regardless of viscosity or temperature variations and is available in multiple sizes and torque options.

Operating modes

• Manual mode: Cycle activated by foot pedal or closed contact; dispenser dispenses at the preset speed. A programmable retraction (suck-back) can be applied at cycle stop.
• Automatic mode: Each input pulse (foot pedal, finger switch or automated signal) triggers a deposit according to parameters stored in the active program.
• Sequence mode: Sequences consist of a series of programs—identical or different—separated by programmable time intervals.

Consumables
All Precifluid® consumables are supplied and compatible with the dispenser.

Technical characteristics

• Stepper screw linked to piston via magnetic coupling
• Minimum dispensing volume: 0.06 µL
• Push force capacity: > 500,000 cps
• Intuitive operation and compact ergonomic design
• Programmable sequences and parameters
• Anodized aluminum body for durability
• Lightweight: < 100 g
• Two control options: standard unit with controller or motor control board
• Sizes available: 3 cc, 5 cc, 10 cc, 30 cc
• HIGH TORQUE version available for very high-viscosity fluids

Applications & positioning
Suitable for micro-volumetric deposits and industrial applications requiring repeatability and precision (micro-deposition, adhesives, marking, filling small cavities, electronics dispensing, laboratory dosing, etc.).

Technical specifications

• Technology: electromechanical stepper motor (patented dispenser)
• Minimum volume: 0.06 µL
• Push force: > 500,000 cps
• Material / construction: anodized aluminum
• Weight: < 100 g
• Available sizes: 3 cc, 5 cc, 10 cc, 30 cc
• Options: HIGH TORQUE version for very viscous fluids
• Operating modes: Manual, Automatic, Programmable Sequences
