- Hydraulics - Pneumatics
- Filter and Separator
- Liquid filter
- Precision High Pressure

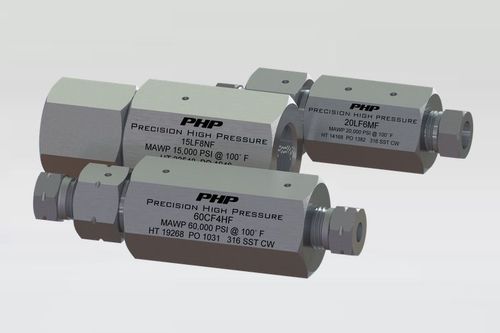

Liquid filter discstainless steelthreaded
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid
- Filtration element
- disc
- Material
- stainless steel
- Mounting
- threaded
- Other characteristics
- in-line
- Operating pressure
Max.: 60,000 psi
Min.: 0 psi
- Filtration size
Max.: 100 µm
Min.: 0.5 µm
Description
NPT Connections with MAWP up to 15,000 PSI (1034 bar)
Materials
316 cold worked stainless steel is standard
Filter discs are made from 300 series stainless steel
Types
Line Filters
Line Filters are used to remove contaminating particles from fluid. Each line filer is provided with two filter elements. The upstream element to filter out larger particles, and the downstream element to filter smaller particles.
Cup Filters
Cup Filters offer maximum filtration surface area for removal of contaminating particles from the fluid system. They may be used in systems which require high flow rates with minimum pressure drop.
