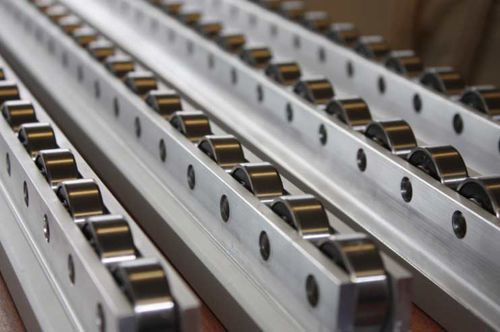

Pneumatic lifter T series

industrial

Pneumatic and hydraulic die lifters are manufactured and supplied by Premitec. The stamping die lifters are designed by Premitec for use in hydraulic and mechanical presses, the die lifters are now used for many applications on special machines in all types of industry. Pneumatic and hydraulic die lifters are available with rollers or balls in standard sizes. (See datasheets) Roller or Ball versions in standard T22, T28 and T36 sizes. Non-standard or special sizes are made to order at your request. The pneumatic die lifters are simple to install to existing T slots, installation takes a couple of minutes and avoids expensive hydraulic installation and high pressure hydraulic systems in the tooling areas. British manufactured recirculating ball units or precision roller bearings reduce friction, with larger diameter bearings compared to hydraulic die lifters, thus, requiring less force to push and pull the tool. Example: A 3,500kg Die takes Approximately 20 kilos to get the Die Moving on the Rollers With quick release couplings, the die lifters can easily be removed from the T slots to be replaced with clamps or die cushion pins if necessary. One pair of Die Lifters can be removed and used in several presses ( as long as they have the same T slot dimensions). They are so easy to transfer from one press to another with their quick release pneumatic couplings, setters can replace and install on whichever press needs changing next.
