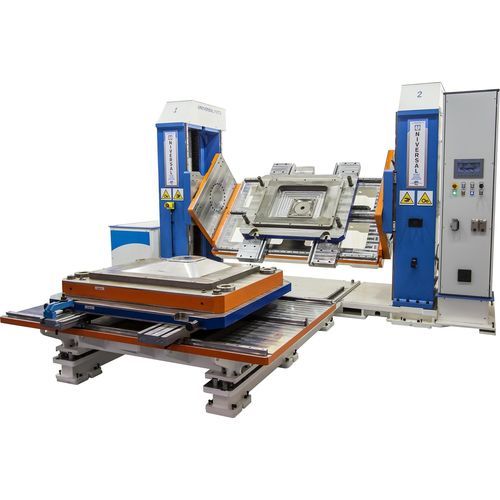

Die splitter

A parallel lift – No crabbing from side to side The Die Splitter enables one person to safely split and service a die sets and plastic injection mould tools in a safe, controlled and repeatable manner. The Die Splitter and mould splitters are designed to safely split the top & bottom tools, but also present the top tool in a position for ease of maintenance with good access to all sides of the tooling. The tool is loaded onto the beams of the Die Splitter by either Tool Carrier or crane. Located inside the beams are Die Rollers, Die Movers and a clamping T slot. These units transport the tool horizontally until it locates in the centre of the Die Splitter. Two pairs of Die Movers are supplied, giving the ability to split the tool and position top and bottom at either side of the Die Splitter to be worked on by the toolmakers. A hydraulic ram is located in each of the two columns, which run vertically, raising and lowering the tool. The rams are hydraulically operated and linked to ensure a perfect parallel raise and lower of the tool. The rams of the die splitter are guided in linear bearing for minimal friction and high positional accuracy. Vertical raise and lower speed is stepless and can be set from zero to max 30 mm/seconds.
