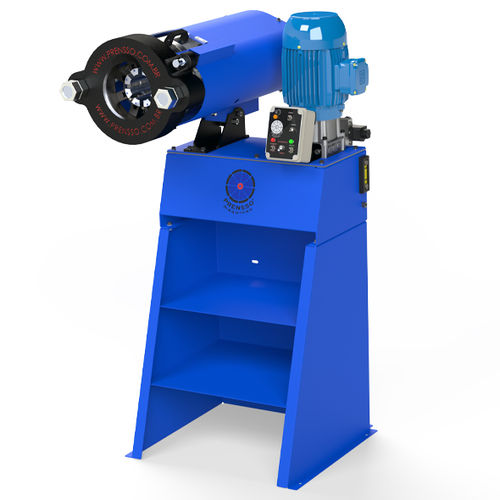

Hydraulic hose crimping machine PHV110 ECD

automatichydraulic

The PHV110 ECD hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 and 6 steel wefts and up to 3” for industrial hoses (on request). FEATURES: - Control panel operation and advance pedal; - System Easy Change by Dagger (ECD), which has a fixed plate of high resistance, dies with dimensions of 65, 77, 110mm and a dagger to replace the set of dies, a practical and cleaner process as there is no need for direct contact with greased parts; - Support panel for dies; - Dies with dimension of 65, 77, 110mm; - Pressing force 115Ton; - Maximum opening 150mm, maximum pass 114mm (without dies); - 5HP; DIMENSIONS: - 50hz - (HxLxW) ) 698x890x768mm | Weight 313Kg; - 60hz - (HxLxW) 698x890x742mm | Weight 302Kg; - Single-phase - (HxLxW) 698x890x768mm | Weight 313Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
