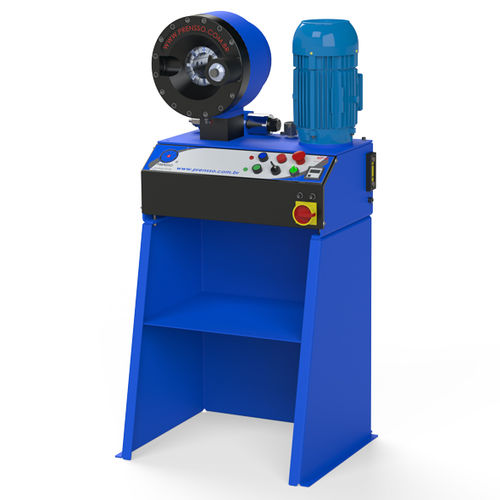

Hydraulic hose crimping machine MP4T
automaticfoot-operated

hydraulic hose crimping machine
hydraulic hose crimping machine
hydraulic hose crimping machine
hydraulic hose crimping machine
hydraulic hose crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
hydraulic hose
Operational mode
automatic
Drive type
foot-operated

Description

The MP4T is a machine for pressing low, medium, high and super high-pressure hydraulic hoses. With press capacity from 3/16" to 2" with 1, 2 and 4 steel wefts. FEATURES: - Control panel operation and electric pedal; - Easy-to-interpret the micrometer real scale 1:1; - Easy Change System by Dagger (ECD). The set of dies is replaced with a single movement with the help of a dagger, a practical and clean process as there is no need for direct contact with greased parts; - 15 sets of dies with a 65mm of pressing area; - Pressing force 118Ton; - Maximum opening 114mm (without dies); - Activation through the pedal for advance, retreat and stop, facilitating the handling of the hose at the moment of pressing; - Support base; - 4HP; DIMENSIONS: - 50hz - (HxLxW) 1325x567x673mm | Weight 246Kg - 60hz - (HxLxW) 1325x567x673mm | Weight 241Kg; - Single-phase - (HxLxW) 1325x567x697mm | Weight 255Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
