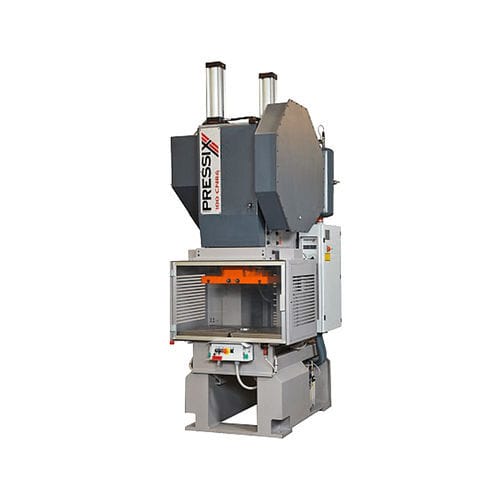

Hydraulic press 100 CNR6motorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Control
- automatic
- Other characteristics
- fixed
- Force
1,000 kN
- Stroke
Max.: 170 mm
(6.693 in)Min.: 10 mm
(0.394 in)- Hydraulic pump power
7.5 kW
- Weight
7,800 kg
(17,196 lb)- Overall length
1,390 mm
(55 in)- Overall width
1,820 mm
(72 in)- Overall height
3,270 mm
(129 in)
Description
slide with 6 bronze guideways, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, adjustable stroke length with toothed ring and pneumatically controlled, balancing cylinders, motorized slide adjustment.
NOMINAL SPEED - Spm - 45
FIXED SPEED - Spm - 65
VARIABLE SPEED - Spm - 30 - 90
SLIDE ADJUSTMENT - mm - 100
SHUT HEIGHT - mm - 350
BOLSTER AREA - mm - 660 x 1.050
BOLSTER HOLE - mm - 165
SLIDE AREA - mm - 500 x 650
SLIDE HOLE - mm - 50
THROAT DEPTH - mm - 330
