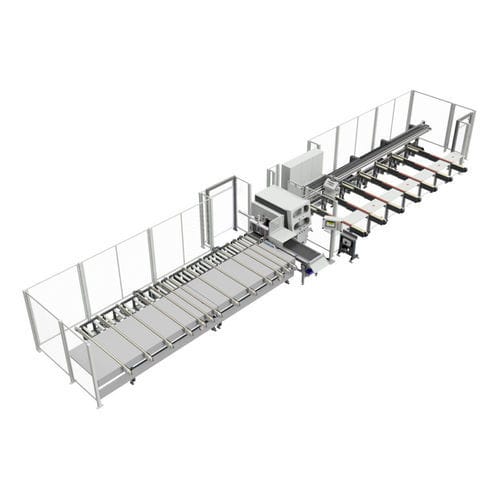

Blade cutting line KS600R

for metalprofilefor industrial applications

Cutting line with loading magazine and profile disposal for small parts and take-off stations for cut-off lengths up to 7,200 mm or 2 times up to 3,000 mm. Technical data: Sawing line for cut-off lengths from 10 to 7200mm sawing width min. 10mm up to max. 470mm sawing height min. 10mm up to max. 200mm remnants from 85mm Loading magazine: The loading magazine of the saw unit is synchronously driven by a three-phase motor and a common shaft. The belts of the loading magazine are 50mm wide and without compartments, therefore no changeover is necessary when changing profiles. The profiles or the profile layers are fed step by step to the material gripper, the length of the transport stroke depends on the profile or layer width. Material feed pusher: The saw line is equipped with an electronically positionable feed system with max. feed length 7300mm with linear motor and magnetic tape. The repeatability is +/- 0,1mm and the traversing speed is max. 180m/min. By entering the profile data in the database of the control system, the pusher automatically adjusts to the profile height. The lower clamping jaws can be moved pneumatically. The upper clamping jaws and the clamping is realized by threaded spindle and servo motor. In addition, the gripper is mounted floating in the Y-axis to compensate for profile inaccuracies. Furthermore, the upper clamping jaw can be equipped with interchangeable pressure pieces, if necessary.
