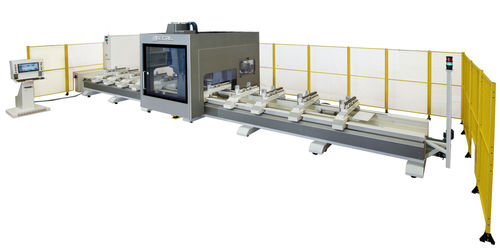

5-axis CNC machining center MC302 Geos – 5

verticalfor PVCfloor type

• 5 axis CNC floor type vertical spindle machining center. • 5 axis (X, Y, Z, C, A) managed by CNC. • Suitable for milling, drilling, tapping and cutting on the 5 sides of aluminum, • PVC, steel and light alloys profiles; thanks to the 5 axis interpolation, the machine is able to execute composite cuts. • The X or longitudinal axis, the Y or transversal axis and the Z or vertical axis belong to the tool movement. • They can be interpolated in linear and circular way on 3-dimension geometrical planes, belonging to X-Y-Z. • The C axis can be turned and positioned on all angles within 440° (± 220°); • the A axis can be tilted and positioned on all angles within 250° (± 125°). • The axis slide on precision profile guides with ball recirculation and • are driven by motors operated with digital systems. • The locking clamps slide on guide rail. • By using the disc cutter it is possible to carry out end-milling • operations on both the ends of the work piece (end-milling cycle). • Milling operations can be performed with linear and circular • interpolation of the axes X-Y-Z. • Available in 3 different longitudinal strokes: X = 7500 mm, X = 9400 mm, X = 11400 mm. • The same applies to the use of a disc cutter (milling cycle) or a circular blade (cycle compound). • The tools cooling is realized through a centralised minimal system. • The hinging length stop are pneumatically managed. • The electric spindle is suitable for quick tool holder change.
