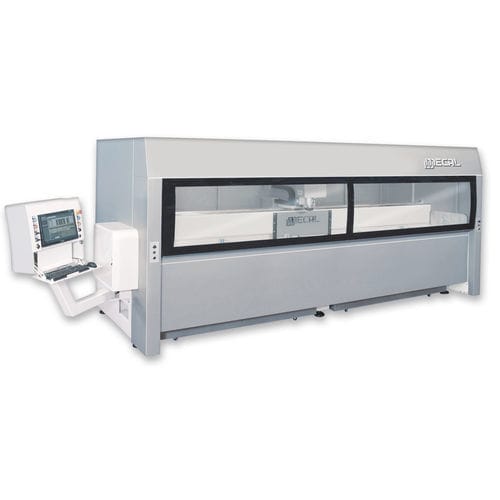

4-axis CNC machining center MC305 Kosmos – 4

verticalmilling

• 4 axis CNC floor-type vertical spindle machining center. • 4 axis (X, Y, Z, A) managed by CNC. • By means of dedicated tools it’s suitable for working on 5 sides of aluminium, PVC and steel sections. • The work pieces are held by means of 4 pneumatic vices on the mobile beam, that can be positioned on any angle between +125° and -125°. • The rotation is directly managed by the control cycle. • It offers a high programming functional capacity by using a three-dimensional graphics software. • Electro-welded base designed to grant maximum rigidity and functional capacity of use. • The axis slide on precision profile guides with ball recirculation and are driven by motors operated with digital systems. • The vices slide on ball recirculation screws, and can be positioned manually by referring to a mm-scale and a laser pointer. • By using the disc cutter it is possible to carry out end-milling operations on both the ends of the work piece (end-milling cycle). • Milling operations can be performed with linear and circular interpolation of the axes X,Y,Z. • The 2 hinging length stops are foldaway and with pneumatic control. • The useful stroke for working bars is 4000 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (8000 mm). • The electric spindle is suitable for quick tool holder change. • The change of the tool holder is AUTOMATICALLY managed. • The tools magazine is positioned in the middle of the basement, inside a protected area. It can store tool holders for milling, threading, end-milling and also angular heads.
