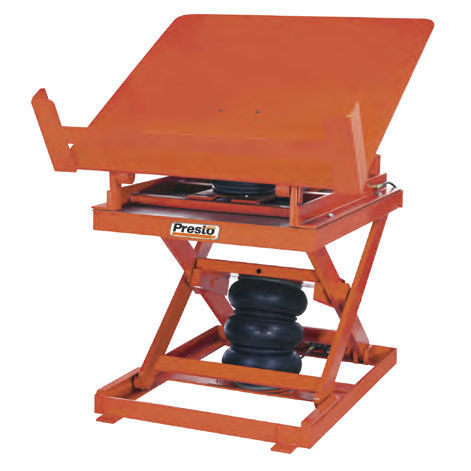

Tilting lift table AXT seriesscissorpneumaticstationary
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- pneumatic
- Type
- stationary
- Application
- for heavy loads, tilting
- Other characteristics
- custom
- Capacity
1,000 lb, 2,000 lb, 4,000 lb, 6,000 lb
(453.6 kg, 907.2 kg, 1,814.4 kg, 2,721.6 kg)- Lowered height
15 in, 19 in
- Lifting height
36 in, 39 in, 43 in
- Stroke
21 in, 24 in
- Tray length
48 in, 56 in, 60 in
- Tray width
36 in, 48 in
- Weight
Max.: 1,860 lb
(843.68 kg)Min.: 1,190 lb
(539.77 kg)
Description
Presto Pneumatic Lift and Tilt Tables - AXT Series and Heavy-Duty Pneumatic Lift and Tilt Tables - AXST Series, Lift loads to the most comfortable working height, and then tilt them for easy access. Tilt tops can be equipped with special fixtures, lips and gussets for positioning a wide range of baskets and containers.
Lift heights of 36" to 43" are available. Loads can be tilted to any angle from 0˚ to 30˚. Lift and Tilt functions are controlled independently and are achieved by the use of heavy-duty air bags.
Choose from 1,000, 2,000, 4,000, or 6,000 lb. capacities.
•Available platforms from 36" x 48" up to 48" x 60"
•Standard pedestal control/Optional foot control
•Air requirements are 80 psi at 15 cfm
•Pressure relief valve standard
•Lifetime warranty on actuator
•Custom designs available
