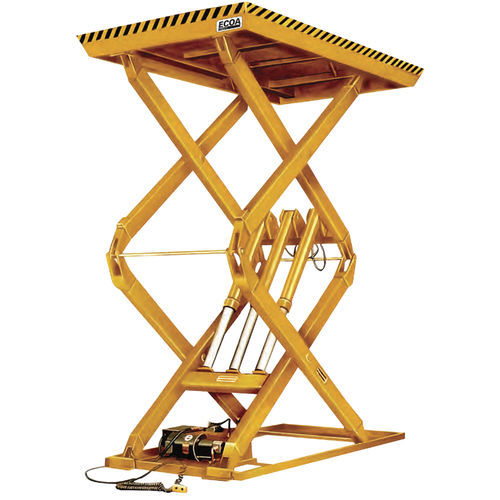

Double-scissor lift table DSL serieselectricstationaryfor heavy loads
Add to favorites
Compare this product
Characteristics
- Technology
- double-scissor
- Operation
- electric
- Type
- stationary
- Application
- for heavy loads
- Other characteristics
- high-lift
- Capacity
2,000 lb, 4,000 lb, 6,000 lb
(907.2 kg, 1,814.4 kg, 2,721.6 kg)- Lowered height
Min.: 10 in
Max.: 18 in
- Lifting height
Min.: 70 in
Max.: 162 in
- Tray length
Min.: 48 in
Max.: 132 in
- Tray width
Min.: 30 in
Max.: 72 in
- Weight
Min.: 1,500 lb
(680.39 kg)Max.: 4,500 lb
(2,041.17 kg)
Description
This high travel double scissor lift table is designed and constructed for heavy-duty applications that require extended vertical travel. Capacities from 2,000 lbs. to 6,000 lbs are available with lift heights up to 162".
•Internally-mounted 1½ HP, 230V, 1PH, 60Hz motor
•Pushbutton pendant control with 20 ft. coil cord
•All controller components are UL and/or CSA approved
•24V operating control voltage
•Hydraulic flow limiter valve at the base of each cylinder
•Optional upper travel limit switch
•Mechanical upper travel stops
•Safety restraint maintenance bars
