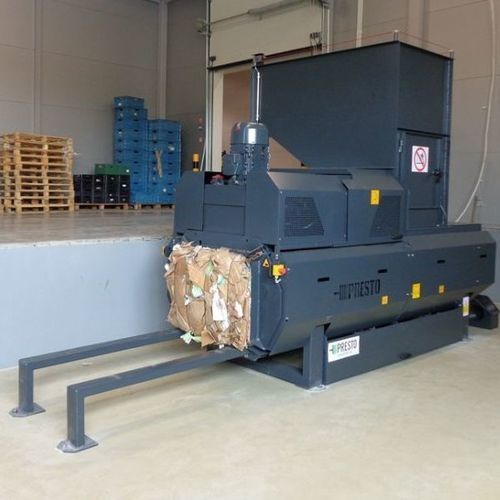

Cardboard baling press CC series

for paperfor plasticshorizontal

Overview
PRESTO horizontal balers are designed to compact recyclable materials into stable, high-density bales. The material is compacted by a horizontally mounted compaction plate driven by an electro-hydraulic motor, ensuring continuous feeding and allowing integration into production lines. PRESTO balers type CC are intended for producing stable, high-density bales from paper, cardboard and plastics where available floor space is limited. Operation can be semi-automatic or fully automatic. The machine's compact overall design and small footprint require minimal floor space. A range of loading options (bin lifters, through-the-wall chutes, pneumatic conveying systems, belt conveyors or other feeder systems) can be employed depending on site requirements. A manual or fully automated adjustable baling channel and a centrally programmable control unit enable efficient compaction to reduce recyclable material volume.

Images (gallery)

• CC30V - ramp hopper (product image)
• CC40V - baler (product image)

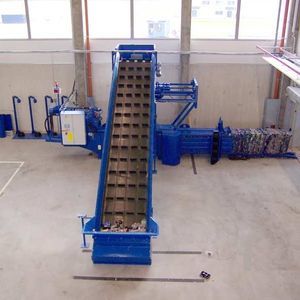

• CC40V - belt conveyor feeding (product image)

More information

• Movie: Movie baler CC (YouTube video)
• Brochure CC (product brochure PDF)
• Dimension sheet CC - M (PDF)
• Dimension sheet CC - V (PDF)

Caractéristiques / spécifications techniques

• Suitable materials: paper, cardboard, plastics
• Compaction method: horizontal compaction plate
• Drive: electro-hydraulic motor
• Operation modes: semi-automatic or fully automatic
• Design: compact overall design with minimal footprint
• Loading / feeding options: bin lifters, through-the-wall chutes, pneumatic conveying systems, belt conveyors, other feeder systems
• Baling channel: manual or fully automated adjustable baling channel
• Control: centrally programmable control unit
• Output: produces stable, high-density bales to minimize recyclable material volume
• Variants / related types referenced: CC-M, CC-V, CC30V, CC40V
