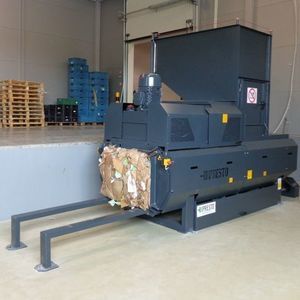

Cardboard baling press HPK series

for paperfor plasticshorizontal

Overview
PRESTO horizontal balers type HPK compact recyclables into solid cubical-shaped bales. The material is compacted by a horizontally mounted compaction plate with an electro-hydraulic drive system. This guarantees continuous feeding of the machine and enables integration into production processes.

Applications
PRESTO horizontal balers of the HPK series are used when high volumes of recyclables such as paper, cardboard or plastic are processed into high-density bales. The bales are easily stackable, enabling optimized storage capacity. The PRESTO balers type HPK are fully automated.

Loading and feeding options

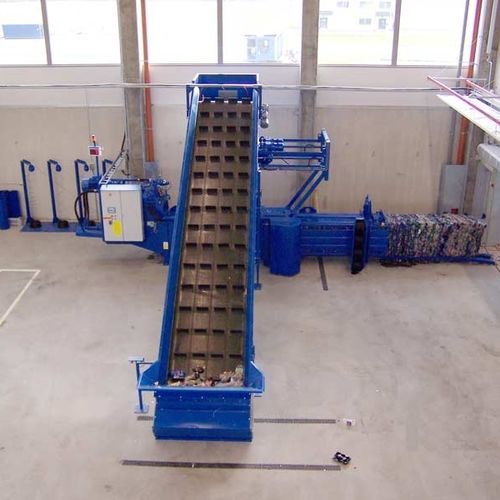

• Conveyor systems
• Bin lifters
• Pneumatic conveying systems
• Other feeder mechanisms (customer-specific)

Control and automation
The fully automatic adjustable baling channel and the centrally programmable control unit ensure efficient compacting of the material to highly compacted bales. This reduces the volume of the recyclable material to a minimum and supports continuous, automated operation.

More information
Movie available showing the baler HPK in operation. Product brochure(s) and dimension sheets are available for the HPK range.

Technical specifications

• Denomination: HPK series (horizontal balers)
• Compaction method: horizontal compaction plate
• Drive: electro-hydraulic drive system
• Bale shape: cubical-shaped bales
• Materials processed: paper, cardboard, plastic (recyclables)
• Operation: fully automated; continuous feeding possible
• Control: centrally programmable control unit
• Adjustability: fully automatic adjustable baling channel
• Loading options: conveyor systems, bin lifters, pneumatic conveying systems, other feeders
• Bale properties: high-density, easily stackable to optimize storage
• Available model sizes referenced on site: HPK 750, HPK 950, HPK 1100 (and variants such as HPK 750 H, HPK 1100 K)
• Documentation: brochure and dimension sheets available (HPK brochure; dimension sheets for HPK 750; HPK 750/950/1100)
