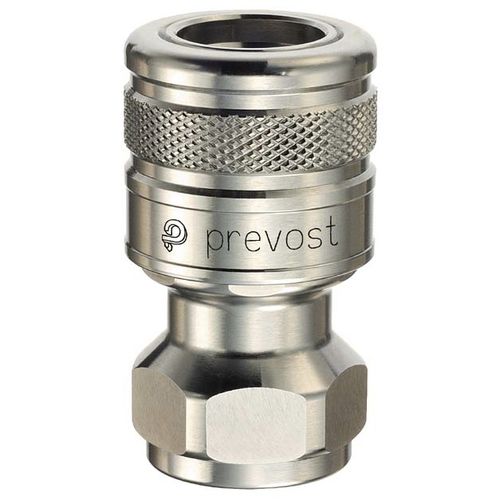

Hydraulic fitting ELS
quickchrome-plated brassuniversal

hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


chrome-plated brass
Other characteristics
universal, automatic

9 mm (0.354 in)

Operating pressure

Max.: 10 bar (145.04 psi)

Min.: 0 bar (0 psi)


ELS couplings are efficiently and ergonomically designed to optimize flow rates in water circuits. They are versatile, automatic and applicable universally. Couplings may be valved or non-valved, depending on technical details of the circuit. They allow interchanging and promote automation. They incorporate a quality seal that is 100% leak-free. Their internal diameter is 9mm. The body is manufactured from chrome-plated brass while the valve is composite. The gasket is nitrile while the needle and spring are stainless steel. The couplings promote high flow rates and work well with water, detergent-mixed water and anti-freeze mixed water. Valved couplings and sealing couplings have flow rates of 33lts/min and 24lts/min respectively. Working pressures are 0-10bar. Working temperatures are -15 to +60°C. They are suitable in unlimited applications.
