Wall-mounted dew-point meter DewMaster

benchtopprecisionchilled mirror

Overview

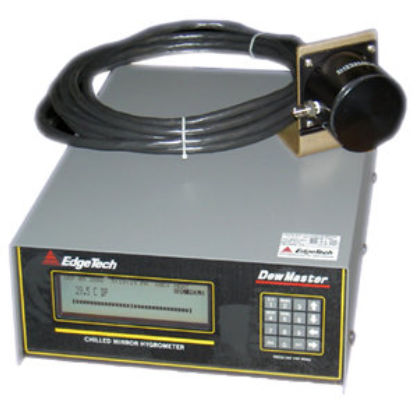

The EdgeTech DewMaster is a chilled-mirror dew point hygrometer designed for industrial and laboratory measurement of gas moisture. Available with one, two or three-stage sensors (integral or remote), it provides primary dew point measurement with a NIST-traceable calibration certificate. Multiple outputs and a pressure input enable integration into process control and calibration systems.

Highlights

• Field-proven chilled mirror measurement technology.
• One, two or three-stage cooling options (integral or remote sensors).
• Front-panel scrolling menu with RS232 for configuration and data output.
• Depression range choices: 45, 65 or 95°C depending on cooling stages.
• Automatic Balance Control (ABC) corrects for mirror contaminants and supports scheduled restandardization.
• Dual programmable alarms with latching or auto-reset and Form C contacts.
• Serial and scalable analog outputs available simultaneously (0-5 V, 0-10 V, 4-20 mA, 0-20 mA).
• Pressure transducer input for psychrometric calculations.

Standard Features

• Primary chilled mirror measurement of water vapor in gases.
• Measures dew point, frost point, moisture %, temperature and derived psychrometric variables.
• Wide measurement ranges and optional high-accuracy models (±0.2°C TP standard, ±0.1°C TP optional).
• NIST-traceable calibration; user-selectable restandardization intervals.
• Graphic display, analog outputs and RS232 communication included.

Application Areas

• Annealing furnaces and thermal processing lines
• Process dryers and drying ovens
• Clean rooms and controlled environments
• Curing ovens and stability chambers
• Plant compressed air and gas systems
• Environmental and test chambers
• Laboratory calibration standards and metrology
• Emission testing and continuous industrial processes

Product Overview
Parameters: Moisture %; Temperature °C; Dewpoint °C; Frostpoint °C
Method: Dew Point Mirror
Range (at 25°C): -75°C – +100°C; -50°C – +100°C; -40°C – +60°C
ATEX: No
SIL: No
Accuracy: ±0.2°C TP (±0.1°C TP optional)
Response time T90: 1.7°C/sec
Output: 3 × 4–20 mA; RS232; Alarm
Supply Voltage: 90–220 V

Technical specifications

• Parameters: Moisture %, Temperature °C, Dewpoint °C, Frostpoint °C
• Method: Dew Point Mirror
• Range (at 25°C): -75°C – +100°C; -50°C – +100°C; -40°C – +60°C
• Accuracy: ±0.2°C TP (±0.1°C TP optional)
• Resolution: 0.1 °C
• Response time T90: 1.7°C/sec
• Flow rate: 0.25–2.5 l/min
• Pressure: up to 20 bar
• Calibration: Moisture generator (NIST-traceable)
• Gas temperature range: -40°C – +100°C
• Output: 3 × 4–20 mA; RS232; Alarm
• Supply Voltage: 90–220 V
• Display: Graphic display
• Protection class: IP65
• Connection: 6 mm (3 m cable option)
• Dimensions: 29 × 13 × 43 cm
• Weight: 3 kg
