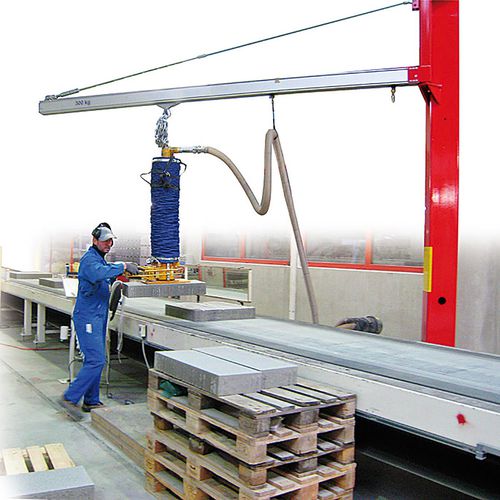

Pillar jib crane ASSK seriesrotary
Add to favorites
Compare this product
Characteristics
- Type
- pillar
- Other characteristics
- rotary
- Load
150 kg, 300 kg
(330.7 lb, 661.4 lb)- Lift height
3,200 mm
(125.98 in)- Boom length
4,000 mm, 5,000 mm
(157 in, 197 in)
Description
Same specifications as Wall Swing Crane AWSK, but slewing range 270°, lenth and working load limit see tabel.
Important notice:
The assumption for mounting the pillar swing crane using the set of dowels is minimum thickness of the concrete floor of 200 mm (73/4“) and a concrete quality C20/25. (Simple installation, no flange plates needed).
Crane height up to bottom edge of crane boom 3200 mm.
Optional accessories:
Set of dowelps DS-ASSK, consisting of the following components:
Special Anchor with mortar cartridge and bush-es, 8 times threaded M 12, thickness of plate min. 8 mm (1/3“) max 25 mm (1“).
