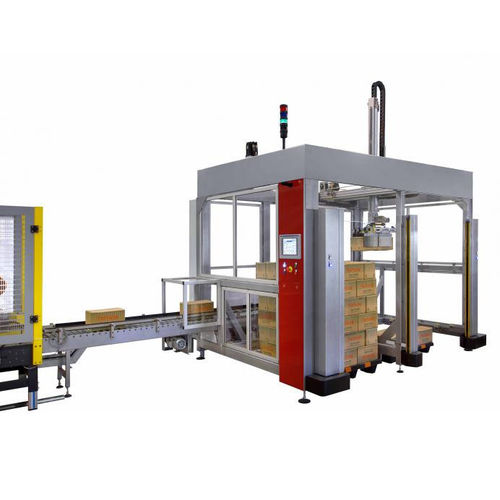

Cartesian palletizer S-201
casecartonmodular

Cartesian palletizer
Cartesian palletizer
Cartesian palletizer
Cartesian palletizer
Cartesian palletizer
Add to favorites
Compare this product


Characteristics

Type
Cartesian
Product applications
case, carton
Other characteristics
modular
Throughput

18 p/min

Description

Cartesian palletizing solution with dual loading station. Compact and flexible manual pallet feeding and withdrawal on one monoblock. The pick & place modular Cartesian palletizer, S-201, has been specifically designed to handle cartons, shrink-packs or any other containers on a regular basis in a small area size. The S-201 is a compact and flexible Cartesian palletizer which has a dual loading station with electronic and manual pallet withdrawal The S-201 palletizer has been designed to be directly coupled with one or two outward conveyors from the packer, thus completing the end of line. This unit is ideal for low and medium capacities. As a general concept, it is considered to have a speed of 10 cycles/min. If the pallet pattern can carry two cases per cycle, then the speed would be 18 cases/minute. It allows simultaneous working with cases and tiles of different sizes in the following sequences: Single case conveyor. In this case, the palletizer with two pallet spaces, on completing pallet, automatically moves to the position of the second pallet to complete the process. Two transporter cases with different SKUs or product presentations. The Sigma 201 palletizer is positioned on each case pallet according to the accumulation or presence of cases on the conveyor.

Catalogs

No catalogs are available for this product.

See all of Prodec Equipos de Envasado, S.A.U.‘s catalogs
