articulated palletizer / case / carton articulated palletizer / case / carton - G-201


  • Type:


  • Product applications:

    case, carton

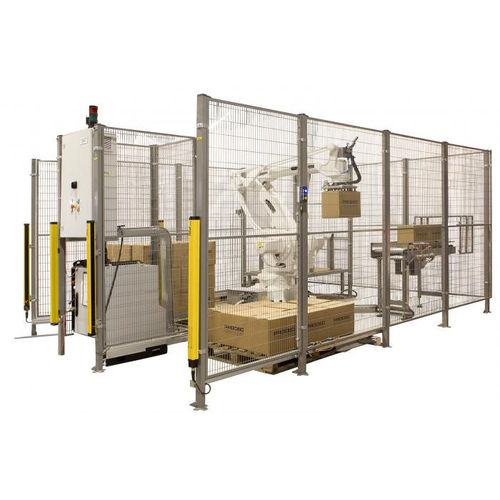

Robotic palletizing solution with dual loading station. Compact and flexible manual pallet feeding and withdrawal on one monoblock.

The G-201 palletizer has been specifically designed to handle cartons, shrink-packs or any other containers on a regular basis in a small area size

The G-201 is a robotic palletizer which has dual loading station and manual loading and unloading of pallet.

The G-201 palletizer has been designed to be directly coupled with one or two output conveyors of the packer, thus completing the end of line.

This unit is ideal for high, low and medium capacities.

It allows simultaneous working with cases and tiles of different sizes in the following sequences:

Single case conveyor. In this case, the palletizer with two pallet spaces, on completing pallet, automatically moves to the position of the second pallet to complete the process.

Multiple case conveyors with different SKUs. The G-201 palletizer positions the case on each corresponding pallet, according to the accumulation or presence of case on the conveyor.

In both cases, the positioning of the empty pallet (the loading position) and removal of the filled pallet can be carried out manually. Access to both palletizing stations may be open, but always protected by a light barrier with "muting" option.
