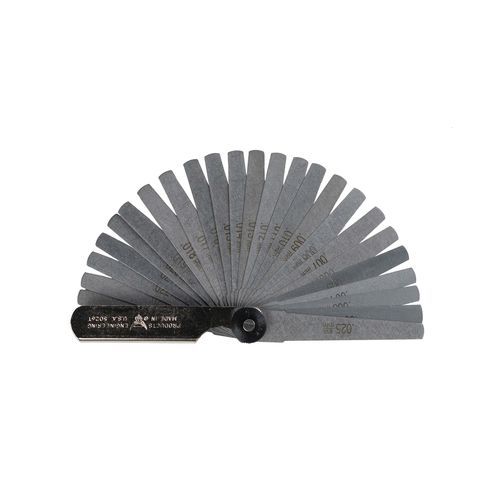

Stainless steel feeler gauge 5026

Product overview
Feeler gauge set 5026 is a compact set of 26 hardened and tempered steel blades designed for gap and thickness measurement in industrial maintenance, inspection and assembly. Each blade is individually marked with its thickness; blades are removable and can be combined as required. The set includes a lock-nut to secure blade(s) at the measurement position and is supplied in a sturdy steel case. Made in USA.

Key features

• Hardened and tempered steel blades for consistent dimensional stability
• Lock-nut secures one or more blades in any measured position
• Individual blade thickness markings for quick identification
• Blades removable and replaceable to configure specific thickness combinations
• Sturdy steel protective case for safe storage and transport
• Custom blade combinations available by special order

Variants / Part Numbers

• 5026 — straight blade: 1/2" width at tip / 3" length / 26 blades (default)
• 5026T — tapered blade: 1/4" width at tip / 3" length / 26 blades
• 5027 — straight blade: 1/2" width at tip / 3" length / 26 blades

Additional Product Notes

• Includes documentation/chart showing blade combinations and thickness markings
• Set suitable for routine gap checks, valve and clearance measurements, and calibration tasks

Technical specifications

• Material: Hardened and tempered steel blades
• Blade count: 26 blades (per set)
• Blade length: 3 inches
• Blade tip width: 1/2 inch (straight variants), 1/4 inch (tapered variant)
• Case: Sturdy steel protective case
• Markings: Individual blades clearly marked with thickness
• Locking mechanism: Lock-nut to secure blade(s) at measurement position
• Origin: Made in USA
• Customisation: Different blade combinations available by special order
