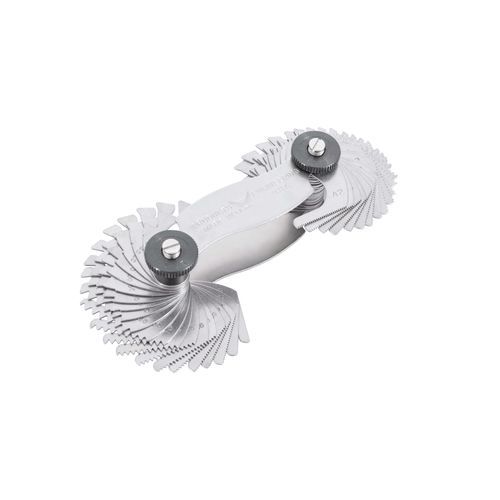

Screw pitch gauge 5629

Overview
MADE IN USA

Blades Included
5629:
Group 1: 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 inch
Group 2: 0.50, 0.75, 1.00, 1.23, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 6.00 mm

5651EM:
Group 1: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 inch
Group 2: 0.40, 0.50, 0.70, 0.75, 0.80, 0.90, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 5.50, 6.00, 6.50, 7.00 mm

Features

• Narrow-designed blades permit inspection of internal and external screw threads
• Locking device at each end secures all blades for storage or positions an individual blade for use
• Correct pitch is determined by matching blade teeth with threads
• Each blade clearly marked with the proper thread size
• Sets available in a wide range of sizes and blade combinations
• Blades protected in a sturdy steel case
• Any combination of blades available by special order

Technical specifications

• Product family: Screw Pitch Gauges (English/Metric)
• Made in: USA
• Available part numbers / variants: 5629 (28 Blades / 2 Groups), 5651EM (51 Blades / 2 Groups)
• Measurement units covered: Inches and Millimeters
• Blade protection: Sturdy steel case
• Locking: Locking device at each end to secure blades
• Usage: For measuring/identifying screw/bolt thread pitch (internal and external)
• Packaging: Set with multiple blades organized into groups
