Magnetic V-block 8611 series
with clamping systempermanent magneticfor machining

Magnetic V-block - 8611 series - Products Engineering Corporation (PEC Tools) - with clamping system / permanent magnetic / for machining
Magnetic V-block - 8611 series - Products Engineering Corporation (PEC Tools) - with clamping system / permanent magnetic / for machining
Magnetic V-block - 8611 series - Products Engineering Corporation (PEC Tools) - with clamping system / permanent magnetic / for machining - image - 2
Magnetic V-block - 8611 series - Products Engineering Corporation (PEC Tools) - with clamping system / permanent magnetic / for machining - image - 3
Add to favorites
Compare this product

Characteristics

Specifications
magnetic, with clamping system, permanent magnetic
Applications
for machining, for inspection, for cylindrical parts

Description

Description

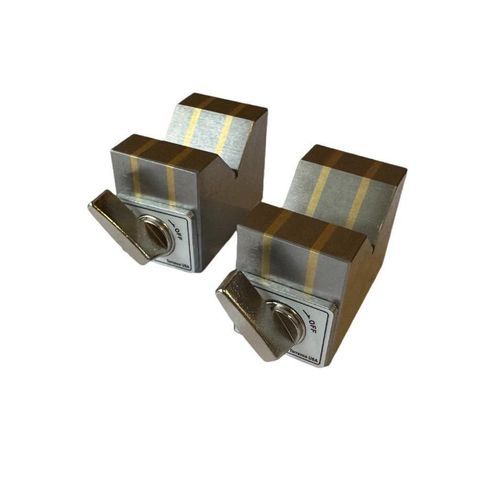

  • Pair of 90° V-groove magnetic V-blocks with integrated On/Off magnetic switch for secure clamping
  • Material: Steel/Copper
  • Parallelism (standard): 0.01–0.03 mm; high-precision options: 5–10 μm, 3–5 μm, 1–3 μm
  • Country of origin: China


Variants / Options
  • 15 kg (33 lbs) — 50 mm (2 in) (default)
  • 20 kg (44 lbs) — 80 mm (3-1/8 in)
  • 23 kg (51 lbs) — 125 mm (5 in)


Usage
  • Designed for secure holding and precise alignment of cylindrical workpieces during machining, inspection and setup operations


Specifications
  • Part #: 8611-050
  • Model/series: KMV series
  • Material: Steel/Copper
  • V-groove angle: 90° (pair)
  • Parallelism (standard): 0.01–0.03 mm
  • Parallelism (high-precision options): 5–10 μm / 3–5 μm / 1–3 μm
  • Magnetic force options: 15 kg (33 lbs), 20 kg (44 lbs), 23 kg (51 lbs)
  • Workpiece diameter capacity options: 50 mm (2 in), 80 mm (3-1/8 in), 125 mm (5 in)
  • On/Off magnetic switch for easy activation/deactivation
  • Country of origin: China
