Magnetic V-block 8611-0 series
permanent magneticfor turningfor grinding

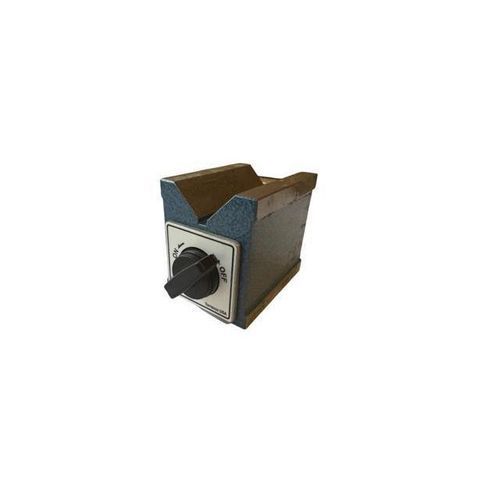

Magnetic V-block - 8611-0 series - Products Engineering Corporation (PEC Tools) - permanent magnetic / for turning / for grinding
Magnetic V-block - 8611-0 series - Products Engineering Corporation (PEC Tools) - permanent magnetic / for turning / for grinding
Magnetic V-block - 8611-0 series - Products Engineering Corporation (PEC Tools) - permanent magnetic / for turning / for grinding - image - 2
Magnetic V-block - 8611-0 series - Products Engineering Corporation (PEC Tools) - permanent magnetic / for turning / for grinding - image - 3
Add to favorites
Compare this product

Characteristics

Specifications
magnetic, permanent magnetic
Applications
for turning, for grinding, for inspection

Description

Product description
  • Magnetic V-Holder with ON/OFF switch for positioning and securing cylindrical workpieces at a 90° vee angle.
  • Standard parallelism: 0.01–0.03 mm; high-precision options available: 5–10 μm, 3–5 μm, 1–3 μm.
  • Multiple magnetic force and size configurations to suit turning, grinding and inspection operations.


Part number / SKU
  • Part #: 8611-010


Available configurations
  • Configuration A: Magnetic force (round bar) 50 kg / (steel plate) 60 kg; Dimension: 60x80x73 mm / 2-3/8"x3-1/8"x2-7/8"; Workpiece diameter capacity: 50 mm / 2"; Price: 159.00 USD
  • Configuration B: Magnetic force (round bar) 60 kg / (steel plate) 80 kg; Dimension: 60x120x73 mm / 2-3/8"x4-3/4"x2-7/8"; Workpiece diameter capacity: 50 mm / 2"; Price: 199.00 USD
  • Configuration C: Magnetic force (round bar) 100 kg / (steel plate) 120 kg; Dimension: 75x100x95 mm / 3"x4"x3-3/4"; Workpiece diameter capacity: 68 mm / 2-5/8"; Price: 249.00 USD


Options / variant groups
  • Magnetic force options: round bar ~50 kg (steel plate ~60 kg); round bar ~60 kg (steel plate ~80 kg); round bar ~100 kg (steel plate ~120 kg).
  • Dimension options (examples): 60x80x73 mm / 60x120x73 mm (option shown as unavailable/disabled on page); 75x100x95 mm (option shown as unavailable/disabled on page).
  • Workpiece diameter capacity: standard 50 mm / 2"; option 68 mm / 2-5/8" (may be disabled/unavailable on page).


Notes
  • High-precision parallelism selections are offered for applications requiring tighter tolerances (5–10 μm, 3–5 μm, 1–3 μm).
  • Some size or force configurations may be shown as disabled or unavailable on the product page; contact sales for availability and lead times.


Technical specifications
  • Commercial designation: Magnetic V-Holder with ON/OFF switch
  • Part number / SKU: 8611-010
  • Vee angle: 90°
  • Parallelism (standard): 0.01–0.03 mm
  • High-precision parallelism options: 5–10 μm, 3–5 μm, 1–3 μm
  • Magnetic force options (approx.): round bar ~50 kg / steel plate ~60 kg; round bar ~60 kg / steel plate ~80 kg; round bar ~100 kg / steel plate ~120 kg
  • Available dimensions (examples): 60x80x73 mm (2-3/8"x3-1/8"x2-7/8"); 60x120x73 mm (2-3/8"x4-3/4"x2-7/8"); 75x100x95 mm (3"x4"x3-3/4")
  • Workpiece diameter capacity: 50 mm / 2" (primary); 68 mm / 2-5/8" (option)
  • Country of origin: China
  • Principal variant price (before tax): 159.00 USD
