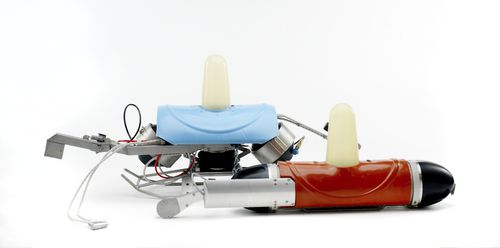

Sealing system 1023100

For rehabilitation of lateral intakes with epoxy resin (other material possible) injection material is carried within membrane cartridges underneath the form plates the pressure of the injection is directly transferred to the damage spot the intersection angles and axes are not predetermined due to a side balloon and a collapsible seal on the form plate, which are fully expandable and inflatable with compressed air the side balloon can be sucked back behind the form plate the electric heating of the balloon and the form plate support the curing of the applied sealing materials KASRO camera change box for three cameras which show the user how the branch pipe looks like and how far the material is pressed in Technical Data Dimensions DN200Length 716mm (without holding arm), chassis diameter 150mm, Weight 25kg Dimensions DN250-600Length 550mm (without holding arm), Weight 15kg Flat compressing shield400mm x 360mm Dimensions balloonBase diameter 100mm, Height 203mm (short conical balloon), 233mm (long conical balloon), 350mm (cylinder balloon) HeatingShield 250W, balloon 200W or 300W Cartridge sizeDN200/DN250: 2x 1,5 liters from DN300: 2x 2,1 liters
