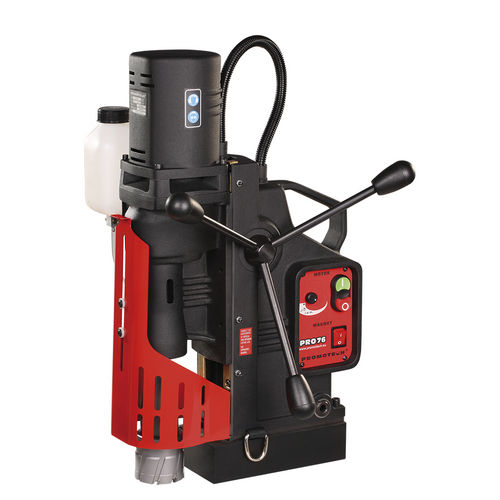

Magnetic drill PRO-76

electric

PRO-76 is multifunction mag base drill with Morse Taper No. 3. It is equipped with motor overload protection system, mechanical gear box with continuous speed adjustment – which works in two speed ranges. It can also be ordered with a 15 degree swivel base as PRO-76+. Key features Unique semi-automatic gib adjustment system (patent pending) enables simple, fast and always correct fine tuning without any expert knowledge or experience. Replaceable spline at the end of armature shaft eliminates laborious and expensive armature maintenance. Compact design allows for drilling very close to vertical surface. PRO 76 is also equipped with electromagnetic base featuring magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpieces. Standard shipping set of PRO 76 includes MT3 Arbor with 19 mm (3/4”) Weldon Bore that accepts cutters up to 60 mm diameter. Optional MT3 Arbor with 32 mm (1-1/4”) Weldon Bore for cutters of larger diameters is available. purpose designed motor with heavy duty gear box electronic speed control electronic speed stabilization system maintenance friendly design gear box and slide system made as one piece maintenance friendly rail guide system HSS cutters Standard Arbor with 19mm Weldon shank TCT cutters Standard Arbor with 19mm Weldon shank Large HSS & TCT cutters Optional Arbor with 32mm Weldon shank Twist Drills Morse Taper No. 3
