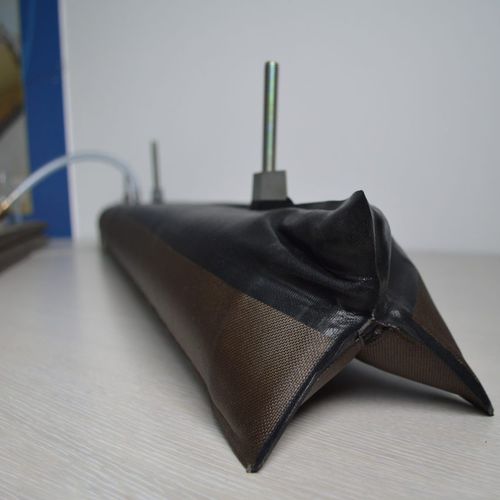

Pneumatic gripper MCS series
softotherfor bottles

pneumatic gripper
pneumatic gripper
pneumatic gripper
pneumatic gripper
pneumatic gripper
pneumatic gripper
pneumatic gripper
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
soft
Number of jaws
other
Application
for bottles, palletizing
Stroke

Max.: 100 mm
(3.937 in)

12 mm
(0.472 in)

Min.: 20 mm
(0.787 in)

Description

By design, the MCS inflatable bottle grippers combines the advantages of the MCB range with a more compact height. For users who need to fill pallets with different size bottles, these grippers can easily replace a number of models from the MC range with just one system. Its low height fits both long or short neck bottles. It is widely used to avoid changing grippers between two types of bottles. Only the spacing between the grippers need be changed. Two lengths are available as standard: 1320 mm and 1460 mm. A food-safe coating can be added to the grippers on request. Depending on your installation, the inflatable rings will be adapted with reinforcing, a dual air supply, a threaded ring height, etc. APPLICATIONS Placing long neck bottles in pallets ADVANTAGES Handy to use •Single air inlet •Fast inflation •Adaptable material Efficiency •Thin empty thickness •Reduced size •Uniformly distributed thrust •Adapts to different bottle models Handling •No mechanical parts •No maintenance •Long service life DETAILED INFORMATION •Material: NPVC coated fabric •Manufacturing technique: hot vulcanization in a vacuum autoclave •Standard lengths: 1320 and 1460 mm lengths •Min./Max. diameter: 33 to 100 mm •Inflation: air •Temperature resistance: up to 50°C •Max. inflation pressure: 1.2 bar •Thickness: 12 mm •Material options: food safe, cloth reinforcing, etc.
