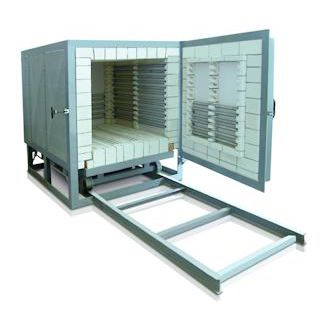

Heat treatment furnace HLF series
mufflecar bottomelectric resistance

heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
heat treatment furnace
Add to favorites
Compare this product


Characteristics

Function
heat treatment
Configuration
muffle, car bottom
Heat source
electric resistance
Other characteristics
programmable, custom, vertical, large-size
Maximum temperature

Min.: 0 °C
(32 °F)

Max.: 1,200 °C
(2,192 °F)

Capacity

Min.: 50 l
(13.21 gal)

Max.: 1,000 l
(264.17 gal)

Width

Min.: 84 cm
(33.07 in)

Max.: 167 cm
(65.75 in)

Height

Min.: 67 cm
(26.38 in)

Max.: 150 cm
(59.06 in)

Depth

Min.: 74 cm
(29.13 in)

Max.: 170 cm
(66.93 in)

Description

Available with brick and fiber insulation elements, with a wide variety of options, HLF series is the optimum choice for general heat treatment procedures. Used by many professionals and craftsman for many years, standard HLF series furnaces cover a range up to 1200°C, and have a volume of 1000 liters. However we do provide a much larger range for our customers on request with customized models. Galvanized coating covered epoxy painted structure, providing longer life time and aesthetics. System Features Vertical or sideways opening door Door safety switch Customized controller option High-quality fiber material High level temperature uniformity Custom made carriage track fitted for the installation site Door with hand fitted brick-on-brick seal High quality heating elements and ceiling construction ensuring a long service life Dual skin housing for low external temperatures and high temperature stability Easy maintenance and service procedures Multiple and extra heating sides added according to customer needs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
