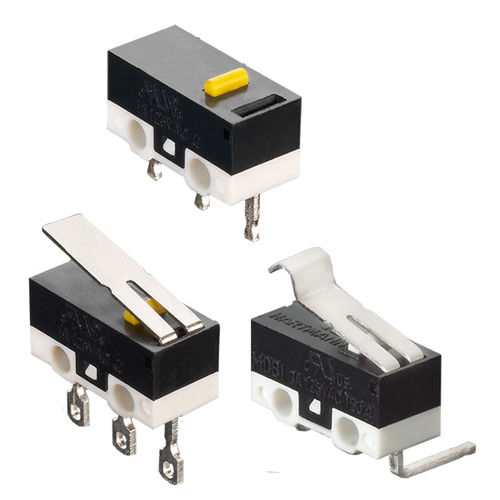

Micro switch MDB1springsingle-poleactuator
Add to favorites
Compare this product
Characteristics
- Type
- spring
- Number of poles
- single-pole
- Other characteristics
- micro, actuator
- Primary current
0.1 A, 0.3 A, 0.51 A, 1 A, 3 A
- Voltage
30 V, 125 V, 250 V
- Diameter / length
12.8 mm
(0.5 in)- Width
5.8 mm
(0.2 in)- Height
6.5 mm
(0.3 in)
Description
Micro switches design D acc. to DIN 41635
Many actuator and terminal variations available
Functional final inspection and testing
Solid design
High-quality materials
Very exact switching position
Micro switches, also known as snap action switches, are primarily used as limit switches, but are also suitable for many other industry applications. The actual switching speed is completely independent from the speed of operation. ISO 9001 approved production together with 100% functional final inspection and testing guarantee reliable operation. These products reflect our long standing experience in design and production of high quality switches.
