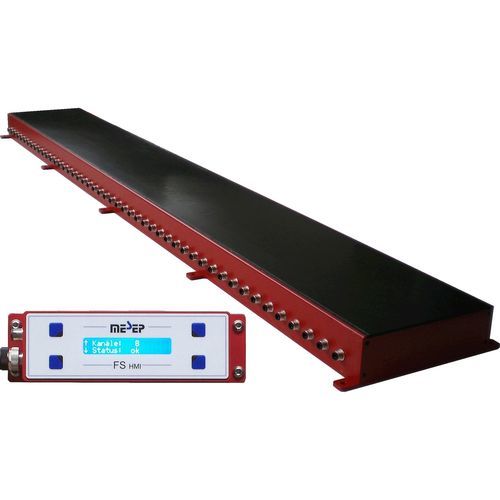

Conveyor metal detector MESEP FS2

integrated

These highly sensitive area sensors for detecting all types of small metal parts stand out due to their spatially resolved detection. This means that the metal parts are not only detected, but their position is determined on the sensor, making this unique sensor particularly suitable for use in the recycling industry. For example, metallic contaminants can be rejected from a material flow with precision, allowing shredded material to be sorted in an optimal way. The sensor can be used for conveyor belts, chutes or free-fall applications. Special features Different sensor widths can be supplied (50–2000 mm) Different sensor widths can be supplied (12.5–100 mm) Integrated controller for ejection device No metal-free zone necessary Sturdy, torsion-resistant aluminium housing Simple installation Separate operating unit can be supplied Interface for PC or PLC Protection class IP65 Sensitivity configurable via control electronics Modular variants on request
