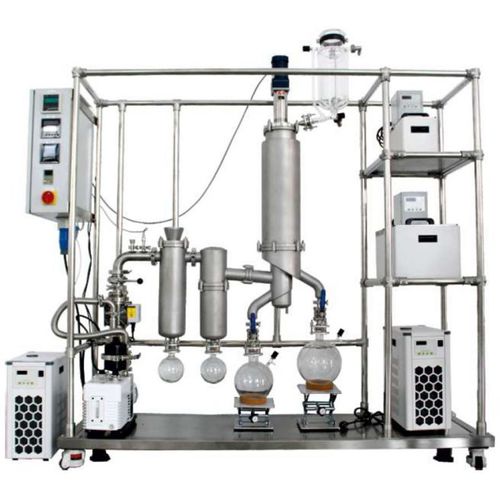

Wipe film distillation unit 6 SS wipe

laboratoryfor industrial effluentsvacuum

Effective Evaporation area: 0.25 m2 Ultimate vacuum degree: ≤ 1.0 Pa Barrel inside diameter: 150 mm Motor Power: 120 W Max RPM: 300 Power supply: 220V/60Hz, 1 phase Processing Flow 2.0-5.0 L/H Discharge system: ball valve Feeding system: 5L manual Evaporator Pressure: Not pressurized Temperature: max 225°C (437°F) Materials: 304 stainless steel Vessel: interior is polished to food grade level Closures: flange Sealing: PTFE flat seals Temperature measurement: Pt100 sensors Water Jacket volume: 100 Liters (26.5 gallons) Raw material feed: manual mode Raw material spread: low speed wiper Condenser Separator: 2 stage condenser with cold trap Pressure: No pressure Temperature: -20°C (-4°F) Materials: 304 stainless steel Chiller Construction: Recirculation cooler Volume: 6L Range: -20°C Rate: 22 L/min Control System Functions: Programmable Logic Controller (PLC) with first level safety functionality and user programmable temperature.
