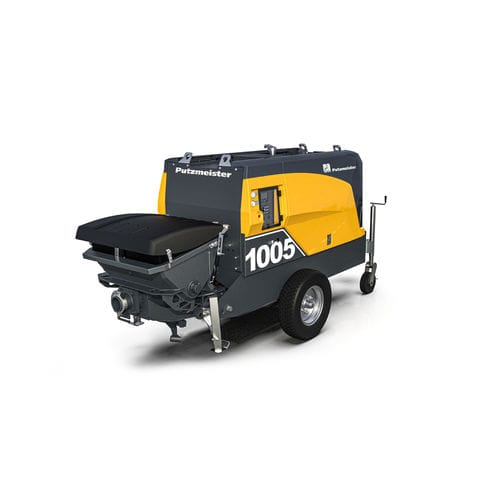

Trailer-mounted concrete pump BSA 1005 D5for constructiondieselwear-resistant
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Applications
- for construction
- Type of fuel
- diesel
- Other characteristics
- wear-resistant
- Output
52 m³/h
(1,836.4 ft³/h)- Pumping pressure
70 bar
(1,015.3 psi)- Power
55.4 kW
(75.3 hp)- Width
1,784 mm
(70 in)- Length
4,697 mm
(185 in)- Height
2,138 mm
(84 in)- Weight
2,900 kg
(6,393 lb)
Description
Overview
The BSA 1005 D5 is a compact trailer-mounted concrete pump from the BSA 1000 series, powered by a Deutz diesel engine and controlled via Ergonic 3. It is designed to pump standard concrete with a maximum aggregate size of up to 32 mm. The machine is available on F8 or F80 chassis configurations.
Key Features
General Information
Characteristics / Technical specifications
The BSA 1005 D5 is a compact trailer-mounted concrete pump from the BSA 1000 series, powered by a Deutz diesel engine and controlled via Ergonic 3. It is designed to pump standard concrete with a maximum aggregate size of up to 32 mm. The machine is available on F8 or F80 chassis configurations.
Key Features
- Engine emission Stage V without AdBlue system
- Fuel-economical automatic speed drawdown on pump stop
- Clear operating data and engine status indication via display
- High-quality wear-resistant components for extended service life
- CE mark
General Information
- Category: Trailer Pumps
- Series: BSA 1000 series
- Weight: lbs
Characteristics / Technical specifications
- Model: BSA 1005 D5
- Brand: Putzmeister
- Series: BSA 1000 series
- Engine: Deutz diesel engine
- Control: Ergonic 3 control
- Maximum concrete grain size: up to 32 mm
- Chassis options: F8 or F80
- Engine emission: Stage V without AdBlue system
- Fuel saving: automatic speed drawdown on pump stop
- Operator interface: display with operating data and engine status indication
- Durability: high-quality wear resistant components
- Certification: CE mark
