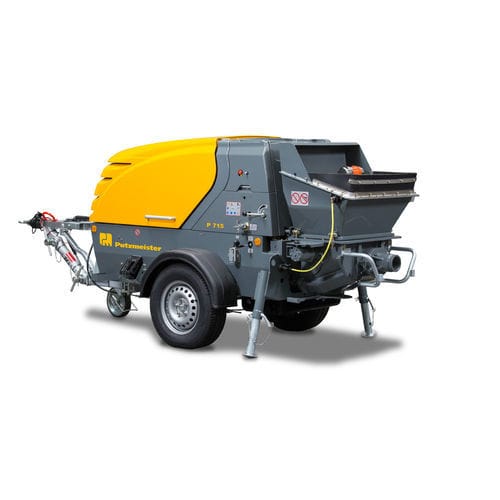

Semi-trailer mounted concrete pump P 715

for construction

Product overview
The Putzmeister P 715 is a stationary concrete pump equipped with a hydraulic 2‑cylinder (dual‑piston) pump, intended for manual, non‑synchronized shotcrete application and pumping of fine concrete with max. aggregate size 16 mm. Maximum delivery pressure is up to 68 bar (986 psi) with a maximum output of 23.5 yd³/h (18 m³/h).

Available chassis versions
Skid (S), Stationary chassis (SE) or Braked trailer (TE).

Key features

• Maintenance- and service-friendly design
• Ergonomic operating panel located on one side
• Large hopper 9.9 ft³ (280 l) with rubber collar and protective grid
• Extremely robust piston pump unit
• Compact dimensions and comparatively low weight for its class
• Chassis versions suitable for road use (trailer variants)

General information

• Feed hopper: 8.8 ft³ (≈250 l)
• Delivery pressure: up to 986 psi (68 bar)
• Horizontal reach: 985 ft (≈300 m)
• Vertical reach: 330 ft (≈100 m)
• Pump type: hydraulic 2‑cylinder (dual‑piston)
• Strokes (piston side): 27 per minute
• Material cylinder diameter / stroke: 6" / 27.5" (≈150 mm / 700 mm)
• Max. aggregate size: 0.62" (16 mm)

Configuration — P 715 SE

• Output: 5.2–23.8 yd³/h (≈4.0–18.2 m³/h)
• Engine: Electric, 40 hp (≈30 kW)
• Operating voltage / frequency: 480 V / 60 Hz
• Weight: 5414 lbs (≈2456 kg)
• Dimensions (L × W × H): 116" × 55" × 55" (≈2945 × 1400 × 1400 mm)
• Filling height: 38.3" (≈975 mm)
• Chassis: Stationary

Configuration — P 715 TE

• Output: 5.2–23.8 yd³/h (≈4.0–18.2 m³/h)
• Engine: Electric, 40 hp (≈30 kW)
• Operating voltage / frequency: 480 V / 60 Hz
• Weight: 5905 lbs (≈2678 kg)
• Dimensions (L × W × H): 181" × 59.8" × 65" (≈4595 × 1520 × 1650 mm)
• Filling height: 46.5" (≈1180 mm)
• Chassis: Braked trailer (road use up to 80 km/h)

Technical specifications

• Model: P 715
• Max. delivery pressure: up to 68 bar (986 psi)
• Max. output/capacity: 5.2–23.8 yd³/h (≈4.0–18.2 m³/h)
• Pump: hydraulic 2‑cylinder, dual‑piston
• Strokes: 27 per minute (piston side)
• Material cylinder: 6" diameter / 27.5" stroke (≈150 mm / 700 mm)
• Max. aggregate size: 16 mm
• Electric motor: 40 hp (≈30 kW), 480 V / 60 Hz
• Weights: P 715 SE: 5414 lbs (≈2456 kg); P 715 TE: 5905 lbs (≈2678 kg)
• Dimensions (L × W × H): SE: 116" × 55" × 55"; TE: 181" × 59.8" × 65"
• Filling heights: SE: 38.3" (≈975 mm); TE: 46.5" (≈1180 mm)
• Chassis options: Skid (S), Stationary (SE), Braked trailer (TE)
