Mortar pump M 740 Stage V

Overview

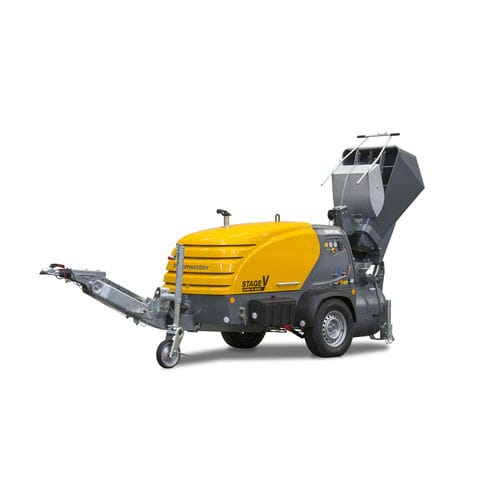

The Mixokret M 740 Stage V is a diesel-powered pumping mixer designed for placing cement screed, calcium sulphate (anhydrite) screed, magnesia screed, sand and aggregates. It is driven by a Deutz Stage V engine meeting current emission regulations and configured for trailer transport.

Available versions

• M 740 DH Stage V — Diesel (basic version)
• M 740 DHB Stage V — Diesel with feeder
• M 740 DHBS Stage V — Diesel with feeder and scraper

Key features

• Increased drive power from the Deutz engine
• Optional machine performance management for higher output or fuel savings
• Mixing unit with overload protection and reversible rotation
• User-friendly robust keypad arranged for intuitive operation using the follow-the-blue-light principle
• Large diesel tank for extended operation
• Optimised maintenance and service access points
• Ergonomically positioned feeder lever and air taps
• Robust chassis design for long service life and retained resale value

General information

• Mixing vessel capacity: 200 L
• Horizontal reach: 180 m
• Vertical reach: 90 m
• Delivery pressure: 8 bar
• Compressor flow: 4.35 m³/min
• Engine: 3-cylinder Deutz diesel with turbocharger
• Engine power: 36.4 kW
• Engine emissions category: Stage V
• Diesel tank capacity: 70 L
• Maximum aggregate size: 16 mm
• Chassis: braked (approved for towing speeds up to 50 km/h)

Configuration variants (selected technical attributes)

• M 740 DHBS Stage V — Output: 4.6 m³/hr; Weight: 1840 kg; Dimensions (L x W x H): 5075 x 1480 x 2431 mm; Filling height: 400 mm
• M 740 DH Stage V — Output: 3.8 m³/hr; Weight: 1715 kg; Dimensions (L x W x H): 4780 x 1480 x 1520 mm; Filling height: 820 mm
• M 740 DHBS Stage V (alternate) — Output: 5.0 m³/hr; Weight: 1900 kg; Dimensions (L x W x H): 5075 x 1480 x 2431 mm; Filling height: 400 mm

Technical specifications

• Mixing vessel capacity: 200 L
• Horizontal reach: 180 m
• Vertical reach: 90 m
• Delivery pressure: 8 bar
• Compressor: 4.35 m³/min
• Engine type: 3-cylinder Deutz diesel with turbocharger
• Engine power: 36.4 kW
• Engine emissions: Stage V
• Diesel tank: 70 L
• Max. aggregate size: 16 mm
• Chassis: braked
• Variant outputs: 3.8 m³/hr; 4.6 m³/hr; 5.0 m³/hr
• Variant weights: 1715 kg; 1840 kg; 1900 kg
• Variant dimensions (L x W x H): 4780 x 1480 x 1520 mm; 5075 x 1480 x 2431 mm
• Filling heights: 400 mm; 820 mm
