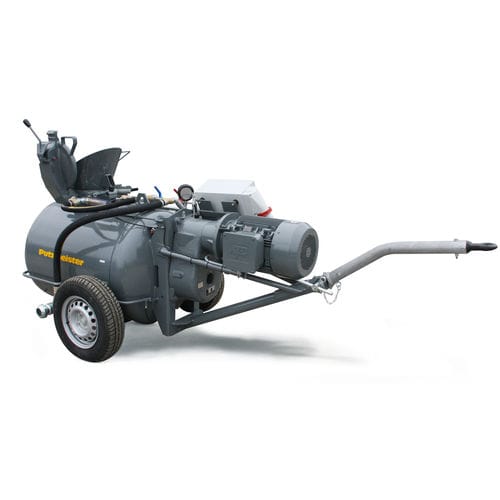

Electric screed mixer-pump M 500

Product overview
The Mixokret M 500 E is a compact floor screed pump designed to convey cement screed, calcium sulfate (anhydrite) screed, magnesia screed, sand and fine concrete up to 32 mm. With a 500 l mixing vessel it is suited to small-to-medium jobs and for users who supply their own compressor.

General information

• Mixing Vessel: 500 l
• Output: 4 m³/hr
• Horizontal Reach: 120 m
• Vertical Reach: 60 m
• Compressor: required with output of 4 m³/min and 7 bar operating pressure or higher (higher air volume increases the delivery distance)
• Delivery Pressure: 7 bar
• Engine: Electric
• Engine Power: 18.5 kW
• Operating Voltage - Frequency: 400 V / 50 Hz
• Weight: 1200 kg
• Length × Width × Height: 3730 × 1400 × 1410 mm
• Filling Height: 1140 mm
• Max. Aggregate Size: 32 mm
• Chassis: unbraked

Key features

• Control box with emergency switch on/off
• Mixing vessel suitable for grain size up to 32 mm
• Environmentally friendly E-motor 18.5 kW 400 V

Technical specifications

• Model: M 500 (Mixokret M 500 E)
• Mixing vessel capacity: 500 l
• Output capacity: 4 m³/hr
• Required compressor: ≥ 4 m³/min at 7 bar (higher air volume increases delivery distance)
• Delivery pressure: 7 bar
• Engine type: Electric
• Engine power: 18.5 kW
• Operating voltage / frequency: 400 V / 50 Hz
• Maximum aggregate size: 32 mm
• Horizontal reach: 120 m
• Vertical reach: 60 m
• Weight: 1200 kg
• Dimensions (L × W × H): 3730 × 1400 × 1410 mm
• Filling height: 1140 mm
• Chassis: unbraked
