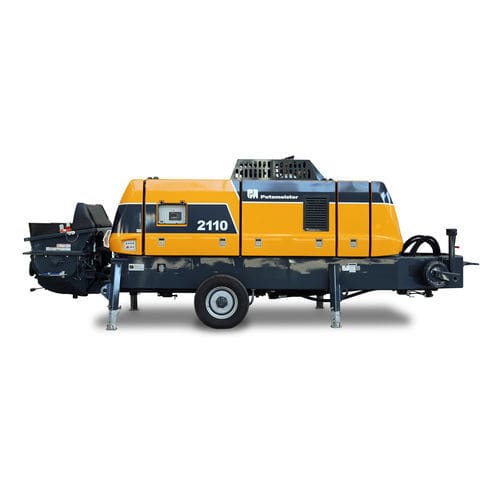

Trailer-mounted concrete pump BSA 2110 HP D5for constructiondieselpiston
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Applications
- for construction
- Type of fuel
- diesel
- Other characteristics
- piston
- Output
Max.: 102 m³/h
(3,602.1 ft³/h)Min.: 70 m³/h
(2,472 ft³/h)- Pumping pressure
150 bar, 220 bar
(2,175.6 psi, 3,190.8 psi)- Power
340 kW
(462.3 hp)- Width
218 cm
(86 in)- Length
725 cm
(285 in)- Height
3 m
(9'10" )- Weight
9,300 kg
(20,503 lb)
Description
Overview
The BSA 2110 HP D5 is a trailer-mounted concrete pump designed for long-distance and high-rise pumping in construction projects. Equipped with an EU Stage V / US Tier 4 compliant diesel engine, it delivers increased power and reduced fuel consumption to support competitive operation.
Engine and Emissions
Powered by a Caterpillar 6-cylinder in-line diesel (EU Stage V / US Tier 4 compliant). The engine features a factory-mounted aftertreatment system including DOC, DPF and SCR to meet emission regulations.
Applications
Suited for long-distance pipeline conveying and high-rise concrete placement in building and infrastructure projects.
Key Features
General Information
Technical specifications
The BSA 2110 HP D5 is a trailer-mounted concrete pump designed for long-distance and high-rise pumping in construction projects. Equipped with an EU Stage V / US Tier 4 compliant diesel engine, it delivers increased power and reduced fuel consumption to support competitive operation.
Engine and Emissions
Powered by a Caterpillar 6-cylinder in-line diesel (EU Stage V / US Tier 4 compliant). The engine features a factory-mounted aftertreatment system including DOC, DPF and SCR to meet emission regulations.
Applications
Suited for long-distance pipeline conveying and high-rise concrete placement in building and infrastructure projects.
Key Features
- Compliant with U.S. EPA Tier 4 (40CFR1039) and EU Stage V
- CE marked
- Lower operating costs and reduced noise
- Standard external gate valve connection
- Optimised airflow with pressure ventilation for all-weather operation
- Up to 15% higher performance compared with Stage III / Tier 3 engines
General Information
- Output (rod side): 102 m³/h
- Output (piston side): 70 m³/h
- Delivery pressure (rod side): 150 bar
- Delivery pressure (piston side): 220 bar
- Strokes (rod side): 26 /min
- Strokes (piston side): 18 /min
- Engine power: 340 kW (US Tier 4)
- Material cylinder diameter / stroke: 200 / 2100 mm
- Outlet diameter: 200 mm
- Dimensions (L x W x H): 7250 x 2176 x 2779 mm
- Weight: 9300 kg
- Trailer type: F8
Technical specifications
- Model: BSA 2110 HP D5
- Engine: Caterpillar 6-cylinder in-line diesel (EU Stage V / US Tier 4)
- Aftertreatment: DOC + DPF + SCR (factory-mounted)
- Max output (rod side): 102 m³/h
- Max output (piston side): 70 m³/h
- Max delivery pressure (rod side): 150 bar
- Max delivery pressure (piston side): 220 bar
- Strokes (rod side): 26 /min
- Strokes (piston side): 18 /min
- Engine power: 340 kW
- Material cylinder diameter / stroke: 200 mm / 2100 mm
- Outlet diameter: 200 mm
- Dimensions (L x W x H): 7250 x 2176 x 2779 mm
- Weight: 9300 kg
- Trailer type: F8
