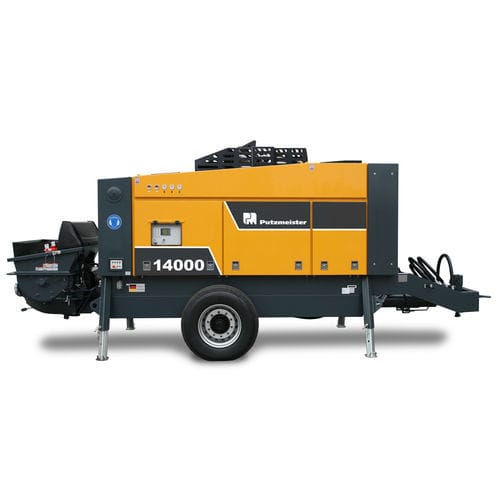

Stationary concrete pump BSA 14000 HP D5

for constructiondieselpiston

Overview
The BSA 14000 HP D5 is a stationary concrete pump driven by a 470 kW Caterpillar diesel engine compliant with EU Stage V emissions. It delivers increased output and reduced fuel consumption to meet current emission limits while maintaining performance for long-distance pumping and building construction applications.

Key Features

• Complies with Directive 97/68/EC — EU Stage V / US Tier 4 final
• CE marked
• Lower operating costs and reduced fuel consumption
• Reduced noise emissions
• Up to 15% higher performance vs Stage III / Tier 3 engines

General Information

• Output (rod side): 84 m³/hr
• Output (piston side): 57 m³/hr
• Delivery pressure (rod side): 158 bar
• Delivery pressure (piston side): 231 bar
• Strokes (rod side): 26 per minute
• Strokes (piston side): 17 per minute
• Engine power: 470 kW
• Material cylinder diameter / stroke length: 180 / 2100 mm
• Outlet diameter: ZX125 mm
• Dimensions (L x W x H): 7370 x 2318 x 3272 mm
• Weight: 12500 kg
• Trailer type: Tandem axles

Technical specifications

• Model: BSA 14000 HP D5
• Engine: Caterpillar diesel, 470 kW, EU Stage V
• Max output (rod side): 84 m³/hr
• Max output (piston side): 57 m³/hr
• Max delivery pressure (rod side): 158 bar
• Max delivery pressure (piston side): 231 bar
• Strokes per minute (rod side): 26
• Strokes per minute (piston side): 17
• Material cylinder diameter / stroke length: 180 / 2100 mm
• Outlet diameter: ZX125 mm
• Dimensions (L x W x H): 7370 x 2318 x 3272 mm
• Weight: 12500 kg
• Trailer: Tandem axles
