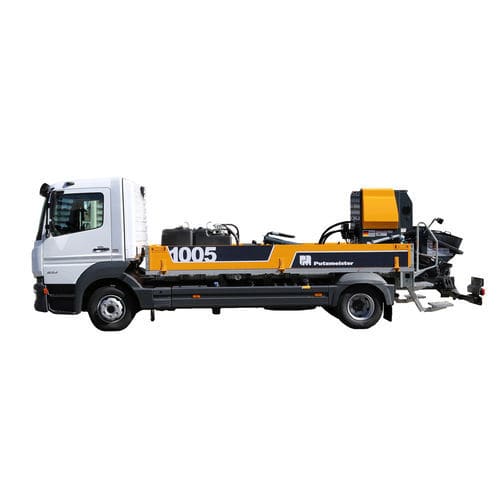

Stationary concrete pump MOLI 1005

for constructionindoor/outdoor

Product
MOLI 1005 — Compact city pump for smaller construction sites
Overview
The MOLI 1005 is a compact stationary-concept concrete pump engineered for short concreting phases on small or urban construction sites. With a delivery capacity up to 52 m³/h and a maximum delivery pressure of 70 bar, the unit combines easy setup, high mobility and targeted cleaning support to reduce downtime and simplify relocation between short jobsites.

Main capabilities and highlights

• Compact footprint adapted to confined/urban sites
• Delivery rate up to 52 m³/h
• Maximum delivery pressure up to 70 bar
• Fast setup and quick commissioning for short pours
• High mobility for rapid relocation across sites
• Integrated compressor to assist line cleaning and conveying
• High-pressure flushing water pump for efficient pipe cleaning
• Large built-in water tank: 700 l

Technical specifications

• Model designation: MOLI 1005
• Type: Compact concrete pump for small/urban construction sites
• Maximum delivery rate: up to 52 m³/h
• Maximum delivery pressure: 70 bar
• Cleaning equipment: integrated compressor; high-pressure flushing water pump
• Water tank capacity: 700 l
• Design: rapid commissioning and easy relocation for short-duration jobs
• Options: extensive equipment and accessory packages available

Applications

• Pumping concrete for small slabs and repair works
• Urban refurbishment and confined-space concreting
• Temporary pours on short-term jobsites
• Supplementary pump for larger projects where short phases are needed

Options & accessories

• Alternative conveying line lengths and diameters
• Additional cleaning and flushing kits
• Site-specific mounting and transport solutions
• Custom accessory packages to adapt to application needs
