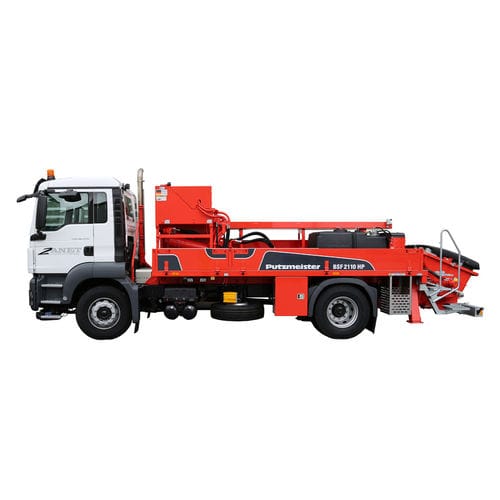

Mobile truck-mounted concrete pump MOLI 2110 HP

for constructionpiston

Overview
The mobile pipeline concrete pump for high-pressure delivery of concrete. Designed for short pours where stationary pumps are not cost-efficient, the MOLI 2110 HP provides rapid deployment and fast turnaround to free the site for subsequent operations.

Key Features

• High utilization across multiple construction sites per day to maximize profitability
• Powerful concrete pump unit with dual-side outputs
• Integrated transport for all components required for concrete delivery
• Simple operation and easy handling on site
• On-board compressor and high-pressure flushing water pump for thorough cleaning of the delivery system
• No time-consuming set-up and no crane required

General Information
Length x Width x Height
8.8 x 2.5 x 3.2 m

Configuration - MOLI 2110-CP2110

• Material cylinder diameter / stroke length: 200/2100 mm
• Output (piston side): 69 m³/hr
• Delivery pressure (piston side): 220 bar (standard delivery line system rated at max line pressure of 85 bar)
• Strokes (piston side): 18 per minute
• Output (rod side): 106 m³/hr
• Delivery pressure (rod side): 150 bar
• Strokes (rod side): 26 per minute

Technical specifications

• Model: MOLI 2110 HP (variant: MOLI 2110-CP2110)
• Dimensions (L x W x H): 8.8 x 2.5 x 3.2 m
• Material cylinder diameter / stroke length: 200/2100 mm
• Output (piston side): 69 m³/hr
• Delivery pressure (piston side): 220 bar
• Strokes (piston side): 18 per minute
• Output (rod side): 106 m³/hr
• Delivery pressure (rod side): 150 bar
• Strokes (rod side): 26 per minute
• On-board compressor and high-pressure flushing water pump for cleaning
