Crawler concrete pump BSC 1005 D5
for constructiondiesel

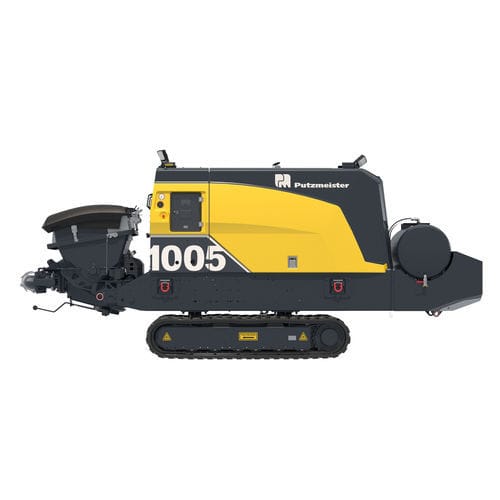

Crawler concrete pump - BSC 1005 D5 - PUTZMEISTER - for construction / diesel
Crawler concrete pump - BSC 1005 D5 - PUTZMEISTER - for construction / diesel
Crawler concrete pump - BSC 1005 D5 - PUTZMEISTER - for construction / diesel - image - 2
Crawler concrete pump - BSC 1005 D5 - PUTZMEISTER - for construction / diesel - image - 3
Crawler concrete pump - BSC 1005 D5 - PUTZMEISTER - for construction / diesel - image - 4
Add to favorites
Compare this product

Characteristics

Configuration
crawler
Applications
for construction
Type of fuel
diesel
Output

52 m³/h
(1,836.4 ft³/h)

Pumping pressure

70 bar
(1,015.3 psi)

Power

55.4 kW
(75.3 hp)

Width

1,486 mm
(59 in)

Length

5,123 mm
(202 in)

Height

2,289 mm
(90 in)

Weight

4,100 kg
(9,039 lb)

Description

The BSC 1005 D5 on a rubber tracked chassis is particularly suitable for smaller delivery volumes. The pump is mainly used with drilling rigs for the construction of small and medium-sized bored piles. The track-mounted concrete pump enables independent travel. The machine is fully equipped with radio remote control for driving and pumping, cleaning accessories, water pump. The BSC 1005 has many other useful options such as a 300 l water tank, air compressor and compressed air tank. These options increase self-sufficient working. The modern Ergonic 3 HP control automatically reduces the engine speed when the concrete pump is stopped, thus reducing diesel consumption. Key Features Lateral pipe routing to the front, optional Radio Remote control for concrete pump and crawler chassis Large water tank (300 l) at the front, optional Rubber crawler chassis
