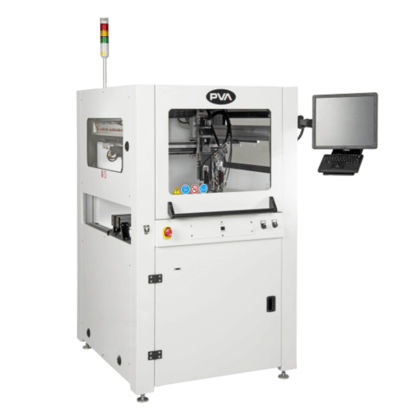

Adhesive coating system Flex Cell

The Flex Cell is a custom three or four-axis robotic platform for dispensing a wide variety of adhesives, sealants, and conformal coatings. Each Flex Cell is designed to your specific application and with your desired options. The Flex Cell employs a robust gantry system featuring precision ball screw slides driven by brushless DC servo motors. Every axis of motion features optical encoder feedback for a truly closed-loop process. The Flex Cell has many options and integrated features including: Robotic system repeatability of 25 microns Patented servo-controlled optional four-axis motion featuring valve tilt and rotate Closed loop process control throughout gantry system Multiple dispensing applications or materials in one cell Onboard PC for unlimited program storage ExclusivePathMaster® programming environment Conformal Coating The application of a protective film or layer of liquid onto a PCB, either in selected areas or over the entire assembly. Conformal coatings are applied using an array of technologies such as atomized spray, airless film, needle dispense and jetting. Dam & Fill A two-step process of first dispensing a high viscosity fluid around the perimeter of a device or electronic circuitry, and then dispensing a low viscosity fluid within the perimeter to fully encase the components. The dam can be applied as a single or multi-layer bead depending on the target fill height required. Encapsulation & Glob Top Applying an epoxy or silicone-based fluid that completely covers a defined area around a flip chip or wire bonded component.
