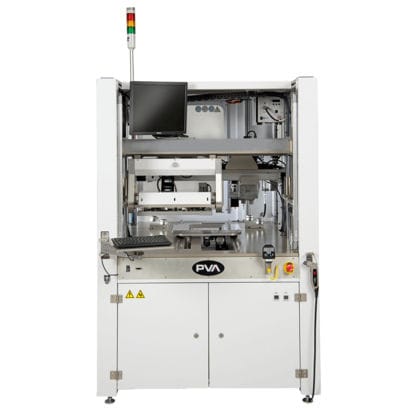

Bonding system PVA710

The PVA710 Optical Bonding System is used to dispense and assemble optical devices in atmosphere without bubbles. It is an ideal solution for use with any optically clear acrylic or silicone. The system offers a complete process including dam and seal dispensing and curing, fill dispensing and cover placement. Sample products include touch screen to LCD, cover glass to LCD, and more. The PVA710 employs a robust gantry system featuring precision ball screw slides driven by brushless DC servomotors. Every axis of motion features optical encoder feedback for a truly closed-loop process. The cover glass trunnion provides an assembly means where the bonded surface is not contacted by the system. The system is designed to accommodate a panel up to 17”at 16:9. The PVA710 Optical Bonding System has many integrated features including: Vision correction of X, Y and skew Exclusive PVA Portal Programming Interface PVA’s global service network The process of applying an optically clear liquid to a digital display, such as LCD or plasma, to bond a cover glass and/or touch sensor to eliminate the air gap between each layer. This provides improved image clarity, especially in outdoor or bright light environments, improved resistance to shock and vibration, and additional protection against dust and moisture.
