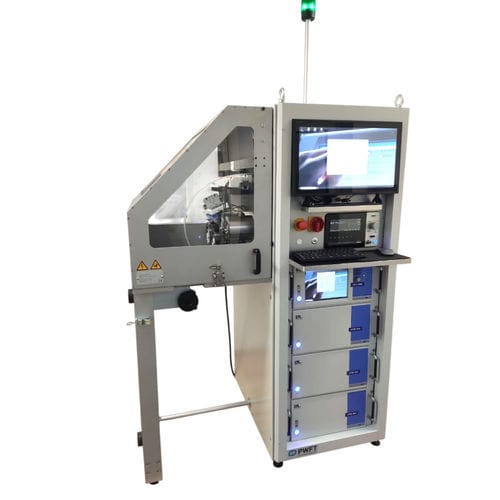

Station for fully automatic electrical testing of cables Application Test device for fully automatic testing of various characteristics (e.g. insulation testing, leakage testing) of single and multi-pole cables. Applied in cable production and quality control. Features - for insulation resistance measurements and high-voltage tests up to 7 kV/DC - for PE tests up to 32 A - for resistance measurement - for continuity testing - for leakage tests of cable connectors up to 10 bar - for functional testing in electrical measurements - measurement in four-wire technology - for single and multi-pole cables - for cables with and without shielding - for cables with and without connectors - for different kinds of cable connectors - automatic measurement process - automatic logging with test report - cable dummy for functional testing - calibration option - touch display - data interface - connection to protective contact socket - compressed air connection The cable test station is used for fully automatic electrical testing of single or multi-pole cables. The cable test station also enables leakage testing of the connectors associated with the cables. To enable these tests, the measurement technology is integrated into a corresponding test device structure. Alternative configurations (number of poles, with/without cable connectors, ...) are possible according to customer requirements. Commissioning, service and training are offered by PWFT, and documentation in accordance with the Machinery Directive 2006/42/EC is supplied.
