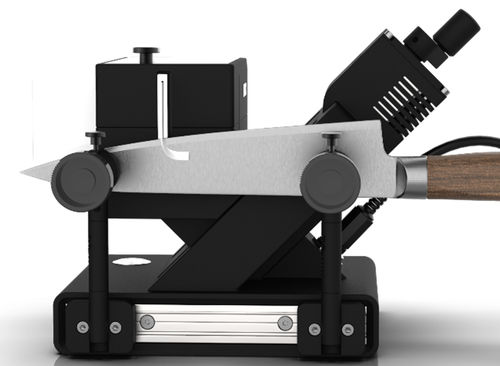

Sharpness testing device nju:tn | N1

automaticmanualsemi-automatic

Sharpness Measurement Device Application For measuring the sharpness of knives and blades. Workshop and laboratory equipment for quality control (e.g. random sample testing) and research and development. Can also be used in the field of knive or blade production. Features - for sharpness testing on knives and blades - testing the sharpening along the cutting edge - for detecting grinding defects (burrs, chipping, ... ) - for measuring chipping of the cutting edge - non-destructive testing - automatic testing - for quality control - for research and development - force transducer with high accuracy - linear drive - manual conveying system for the test medium - display - different blade holders - adjustment options for blade spacing and blade angle - software for data acquisition and data evaluation Description The nju:tn I N1+ is a system for automated cutting property measurement of knives and blades for workshop and laboratory use. The measuring method is based on a cut into and through a band-shaped foil (nju:tn | Sheets), whereby the cutting force is measured during the cut. The cut is performed either manually or optionally by an automation unit (e.g. nju:tn | N+) using a motor. After the cut, the test medium is fed manually or automatically in systems for blade production. The measured force-displacement curve or the characteristic values evaluated from it (sharpness characteristic value, cutting ability characteristic value) evaluate the cutting properties of the knife or blade. They are visualized on the display and can be read out using the nju:tn | Data PC software.
