Test chamber with xenon arc lamp Q-SUN Xe-1 Series
climatictemperaturelighting

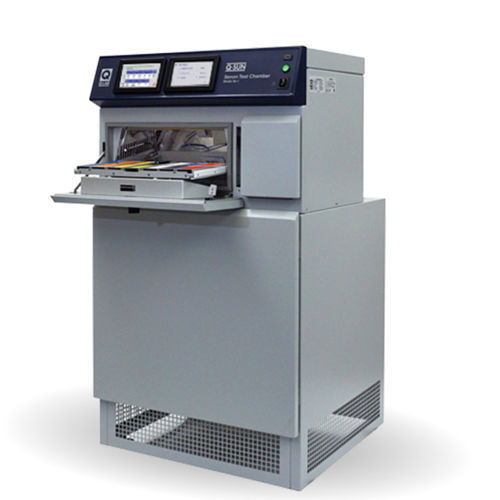

Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 2
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 3
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 4
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 5
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 6
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 7
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 8
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 9
Test chamber with xenon arc lamp - Q-SUN Xe-1 Series - Q-LAB - climatic / temperature / lighting - image - 10
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, lighting
Test type
solar simulation, photostability, water spray
Product applications
for materials testing
Application domain
for metrology laboratories
Configuration
compact, benchtop, horizontal
Light source
with xenon arc lamp
Number of doors
1-door
Chamber material
aluminum
Options and accessories
with temperature and climatic control
Other characteristics
low-temperature
Temperature

Max.: 100 °C
(212 °F)

Min.: 10 °C
(50 °F)

External length

78 cm, 99 cm
(30.7 in, 39 in)

External height

52 cm, 72 cm, 138 cm
(20.47 in, 28.35 in, 54.33 in)

External depth

65 cm, 79 cm
(25.59 in, 31.1 in)

Description

The Q-SUN Xe-1 xenon arc chamber reproduces the damage caused by full-spectrum sunlight, heat, and rain. In a few days or weeks, it can reproduce the damage that occurs over months or years outdoors. The Q-SUN Xe-1 model is an economical tabletop lightfastness, colorfastness, and photostability chamber. It has a single xenon arc lamp and is available with optional water spray and chiller. Its small scale is perfect for a lab with a limited budget or those conducting exploratory R&D testing. Installation of the Q-SUN Xe-1 tester is simple and specimens can be conveniently mounted horizontally on its flat specimen tray. The Q-SUN Xe-1 tester is the simplest, most reliable, and easiest-to-use xenon arc test chamber available. Realistic and Versatile The Q-SUN Xe-1 tester’s xenon arc lamp provides the best match to the full spectrum of sunlight. Near-horizontal specimen mounting and optional water spray provide the most realistic moisture simulation available in a compact xenon arc tester. An optional chiller is available for low-temperature applications. Easy To Use The Q-SUN Xe-1 xenon test chamber is easy to install and can be exhausted directly into the laboratory. It is easy to use and requires minimum maintenance. Specimen mounting and evaluation is fast and easy with the unique slide-out flat specimen tray. The Q-SUN Xe-1 tester is completely automated and can operate continuously, 24 hours per day, 7 days per week. Other features include: • Remarkably simple user interface in 17 user-selectable languages: English, Spanish, French, German, Italian, Japanese, Chinese, Korean, Czech, Dutch, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
