Magnetic base
Add to favorites
Compare this product
Description
Overview
Magnetic hold-downs for acoustic emission (AE) sensors, designed to secure sensors to ferromagnetic test surfaces. Units consist of a permanent magnet and a protective shell. M series are standard-temperature hold-downs; H series are high-temperature variants — consult model table for specific ratings.
Features
Product images

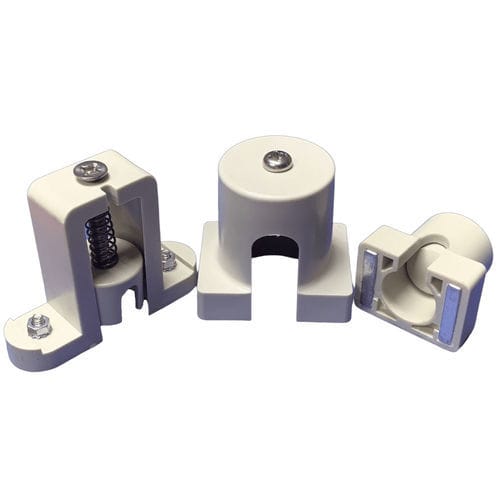

Photographs and diagrams illustrate general product views and the different shapes/sizes of the M and H series models.
Model table
Model | Internal size (D × H) | Working temperature
M20 | 20 mm × 13 mm | -20°C to 80°C
M20A | 20 mm × 17 mm | -20°C to 80°C
M36 | 32 mm × 35 mm | -20°C to 80°C
M36A | 32 mm × 55 mm | -20°C to 80°C
M36B | 32 mm × 35 mm | -20°C to 80°C
M36C | 32 mm × 35 mm | -20°C to 80°C
H20 | 20 mm × 17 mm | -196°C to 550°C
H20A | 22 mm × 17 mm | -196°C to 350°C
Accessories
Technical specifications
Magnetic hold-downs for acoustic emission (AE) sensors, designed to secure sensors to ferromagnetic test surfaces. Units consist of a permanent magnet and a protective shell. M series are standard-temperature hold-downs; H series are high-temperature variants — consult model table for specific ratings.
Features
- Magnetic clamping for fast, repeatable mounting on ferromagnetic structures
- Simple, compact construction
- Range of models to fit common AE sensor diameters and configurations
Product images
Photographs and diagrams illustrate general product views and the different shapes/sizes of the M and H series models.
Model table
Model | Internal size (D × H) | Working temperature
M20 | 20 mm × 13 mm | -20°C to 80°C
M20A | 20 mm × 17 mm | -20°C to 80°C
M36 | 32 mm × 35 mm | -20°C to 80°C
M36A | 32 mm × 55 mm | -20°C to 80°C
M36B | 32 mm × 35 mm | -20°C to 80°C
M36C | 32 mm × 35 mm | -20°C to 80°C
H20 | 20 mm × 17 mm | -196°C to 550°C
H20A | 22 mm × 17 mm | -196°C to 350°C
Accessories
- AE couplant: high-temperature paste type (typical use range -35°C to 235°C, melting point ≥270°C)
- Calibration tools: pencil break and guide rings for manual source generation (e.g. Φ0.3 mm 2H or Φ0.5 mm HB tips)
- Sensor signal leads: shielded cables, commonly 1 m or 2 m lengths
- AE coaxial cables: BNC‑terminated, lengths from 1 m up to 100 m
- Protective transport cases: rugged, crush- and impact-resistant, some models with wheels and telescopic handle
Technical specifications
- Function: Magnetic hold-down for AE sensors on ferromagnetic materials
- Construction: Permanent magnet with protective shell
- Series: M series (standard temperature), H series (high-temperature)
- Example dimensions: M20 (20 × 13 mm), M20A (20 × 17 mm), M36 (32 × 35 mm), M36A (32 × 55 mm), M36B (32 × 35 mm), M36C (32 × 35 mm), H20 (20 × 17 mm), H20A (22 × 17 mm)
- Temperature ranges: M series typically -20°C to 80°C; H series examples H20 -196°C to 550°C, H20A -196°C to 350°C
- Typical use: Secure, repeatable mounting of AE sensors for condition monitoring and non-destructive testing on ferromagnetic surfaces
